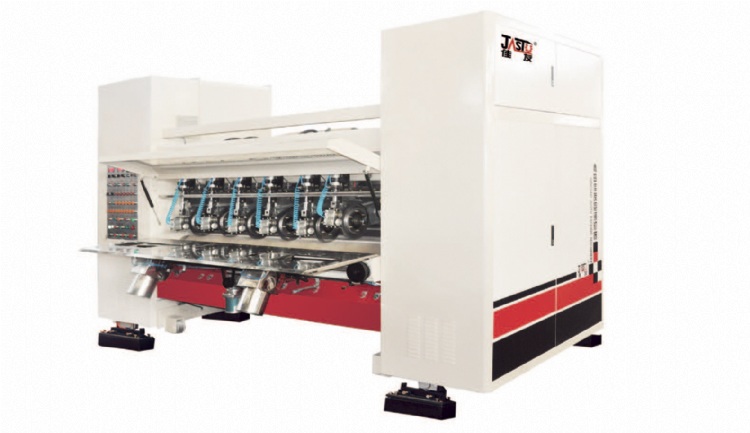

NC Thin Blade Slitter Scorer (Common Type & Servo Type)
Model: NCFY-1800-0(128) NCFY-2000-0(128) NCFY-2200-0(128)
Category: Automatic/Industrial Machines & Equipments / Paper Making & Converting Machines / Corrugated Carton Making Machines
Characteristics
As the essential dry end corrugated paperboard production equipment, it is fully controlled by the computer, auto quick order change, high precision scoring and high quality slitting. It reduces the line downtime and improves productivity significantly.
Specifications
Function
As the essential dry end corrugated paperboard production equipment, it is fully controlled by the computer, auto quick order change, high precision scoring and high quality slitting. It reduces the line downtime and improves productivity significantly.
Features
1. Imported high quality industry computer and PLC compose the machine NC system.
2. High quality linear guides and high - precision ball screw guarantees a ≤± 0.5 MM slitting and scoring precision.
3. Memory can store 999 orders , auto order change or manual order change without stopping.
4. Automatic synchronize with the corrugated production line speed , can be connected with production management system with excellent compatibility.
5. Quick order change within 3 ~ 6 seconds (servo type : 3 seconds). Two sets running simultaneously can realize fast order change, less waste paperboard.
6. Thin tungsten alloy steel blade, sharp and long serving life more than 8 million meters.
7. Patent passive type grinder, light and handy structure, easy maintenance.
8. Computer controlled auto grinding or manual grinding, knifes can be grinded while cutting at the same time, improve productivity.
9. Well selected three type scorer: convex on concave ( single wall), convex on concave (double wall) and convex on flat, which can be altered by electrical driven system.
10. Scoring line depth is controlled by computer, with fine scoring results for easy board folding.
11. Imported synchronous belt for conveying device with higher precision, longer serving life and lower noise.
Power, pneumatic part
1.Taiwan gear speed reducer
2.Shandong Jiuli Inverter motor
3.SMC, JDK, SNS and the other brand pneumatic element
Convey part
1.Balanced reducing transmission belt, imported synchronous belt
2.Taiwan Silvering, Boater ball screw, linear guides
3.Japan NSK, HRB high precision bearing
Execute part
1. Support parts made by high quality steel.
2. ZG230-450 steel casted movable and fixed plates for the blade and scorer wheels
3. High quality steel for transmission shaft
4. High quality tungsten alloy steel blade
Controlling Part
1. Brush Roll Drive : Japan TOSHIBA or Taiwan Delta Inverter.
2. Blade & Scorer Drive: Japan TOSHIBA or Taiwan Delta Inverter.
3. Operation Monitor: standard industry computer, American Bonner vision sensor, digital display meter.
4. Monitoring control: Taiwan Fatek PLC; Germany P+F approach switch, optoelectronic switch; Japan NEMICON encoder.
5. Low-voltage apparatus: Schneider, Taian, Chint.
Parameters
Type NO. | Max Slitting Width(mm) | Min Slitting Width(mm) | Total Power(KW) | Machine Size(mm) |
NCFY-1800-0(128) | 1850 | 135 | 16.25 | 3680X1650(1350)X2340 |
NCFY-2000-0(128) | 2050 | 135 | 16.25 | 3880X1650(1350)X2340 |
NCFY-2200-0(128) | 2250 | 135 | 20.25 | 4080X1650(1350)X2340 |
NCFY-2500-0(128) | 2250 | 135 | 20.25 | 4080X1650(1350)X2340 |
