Specifications

Function

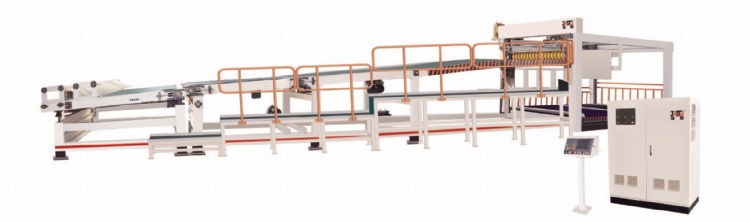

NC up and down stacker can finish the piling, batching, stacking, lateral ejecting cycling procedure automatically;

The unique design of end delivery section with the hangling basket lateral ejection structure balance to each other, synchro-lifting, shorten the batch change time, reduce the power consumption.

It is suitable for high speed corrugated paperboard production line.

Feature


1.High quality HMI and high quality PLC compose the computer control system, can be connected with production management system.

2.Front stacking section is drum type wheels plus steel strips structure, which solve the air cushion type paperboard drifting problem caused by the altitude difference between the cutter and the stacker.

3.Multi groups of independent controlled speed-reducing carbon fiber braking brush, ensure neat stacking at different line speed for different cutting length.

4.Multi sectioned belts with independent inverter controlled motors, auto tracing the production line speed, stacking, batching and order changing accoding to different line speed, different cutting length, and auto cycle working .

5.The gantry delivery end section connected with the hanging basket lateral discharging device by chains, balancing to each other, synchro-lifting, less power consumption, less batching change time, increased production speed. Synchro-lifting controlled by AC servo controller, neat stacking and safe running.

6.The movable paperboard baffle can be auto-adjusted for different length and specification paperboard, neat stacking.

7.The paperboard back baffle can be lifted, shifted automatically to achieve multi order stacking, suitable for small orders’stacking.

Power, pneumatic part

1.Shanghai Realland asychronous servo motor

2.Duplex reduction motor

3.SMS. JDK, SNS and other brand pneumatic element

Convey part

1.Imported elastic coupling, high speed, long serving life.

2.Imported synchronous conveying belt

3.HRB high precision bearing

Execute part

1.High quality hot rolling channel steel frame

2.Conveying roller made of high quality seamless, fine finish steel tube, dynamic balanced.

3.Hantang material conveying belt

4.Imported paperboard line modular conveying belts

Controlling Part

1. Down platform lifting control: KEB AC Servo Driver, Germany

2. Conveying section control: Delta Inverter, Taiwan

3. Paperboard back baffle control: Delta Inverter, Taiwan.

4. Transverse ejection control: Delta Inverter, Taiwan.

5. Operation monitor: Standard industrial computer or MCGS color touch screen.

6.Monitoring control: Fatek PLC, Taiwan; P + F proximity switch, photoelectric switch, Germany; Sidi Encoder, Chengdu.

7.Low voltage apparatus: Schneider, Taian, Chint.

Parameters
