Specifications

Function

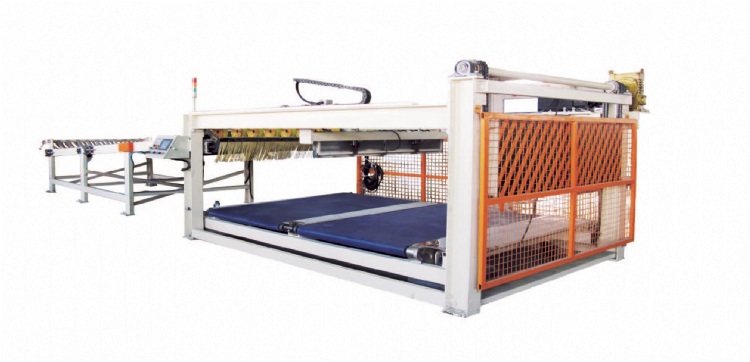

It is the corrugated paperboard production line back section equipment for paperboard sorting, overlap conveying, stacking and transver ejecting.

It is for the medium and high speed corrugated paperboard production line, auto counting, auto seperating at pre-set quantity, auto order changing.

Feature

1.High quality HMI and high quality PLC compose the computer controlling system, can be connected with production management system.

2.Conveying roll driven by inverter motor, the conveying belt automatically match up the production line speed, power saving with high efficiency.

3.Each section belts driven by independent inverter motors, sort, pile, and count accoding to different line speed, different paperboard cutting length.

4.Modular assembled belts or flat belts for ransverse ejection section, steady running, low noisy to guarantee bottom paperboard without poor flute.

5.The hangling basket controlled by AC servo controller. The paperboard back baffle can be adjusted automatically according to different paperboard length, neat stacking, steadily, safely, reliable running.

6.All conveying belt roller are electroplated, attractive and durable.

Power, pneumatic part

1.Shanghai Realland asychronous servo motor

2.Duplex reduction motor

3.SMS. JDK, SNS and the other brand pneumatic element

Convey part

1.Imported elastic coupling, high speed, long serving life.

2.Imported synchronous conveying belt

3.HRB high precision bearing

Execute part

1.High quality hot rolling channel steel frame

2.Conveying roller made of high quality seamless, fine finish steel tube, dynamic balanced.

3.Hantang material conveying belt

Controlling Part

1. Down platform lifting control:KEB AC Servo Driver, Germany

2. Conveying section conrol: Delta Inverter, Taiwan

3. Paperboard back baffle control: Delta Inverter, Taiwan.

4. Transverse ejection control: Delta Inverter, Taiwan.

5. Operation monitor: Standard industrial computer or MCGS color touch screen.

6.Monitoring control: Fatek PLC,Taiwan; Germany P + F proximity switch, photoelectric switch, Encoder (Incremental and SINCOS).

7.Low voltage apparatus: Schneider, Taian, Chint.
