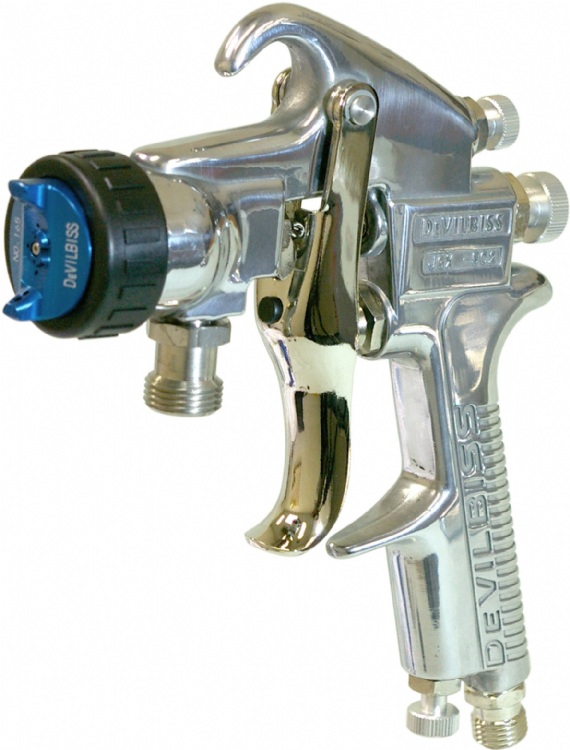

JGX-502 (DeVilbiss spray hand gun)
Model: JGX-502
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Coating Equipment
Characteristics
【Automotive refinishing / General industries】
• Lightweight, compactness, and high performance. Outstanding atomization is achieved with the JGX-502 spray gun, although it weighs only 430 g (Gravity), or 440 g (Suction). The JGX-502 provides a quality finish with both metallic and the pearl mica paints.
• A special UHMW polyethylene seat built into the stainless steel fluid tip prevents fluid from leaking past the tip, and extends usable life of the fluid tip and needle.
• All fluid passages in the JGX-502 spray gun are made from stainless steel, making it suitable for all types of materials.
• Perfect alignment between the air cap and the fluid tip is maintained through DeVilbiss patented Ball and Cone principle, and therefore it provides excellent atomization as well as consistent and uniform spray patterns.
• A new two-piece combination needle packing of patented design provides surprisingly long packing life. Also, less frequent packing adjustment is required.
• The air adjustment valve positioned at the air inlet on the gun handle allows the operator easy air adjustment.
Specifications
【Type: Gravity / Suction / Pressure】
Atomization: Conventional
Air inlet: G 1/4
Fluid inlet: G 1/4 (Gravity); G 3/8 (Suction, Pressure)
Weight: 430 g (Gravity); 440 g (Suction, Pressure)
| Air cap No. | 103 | 143 | 165 |
| Tip size (φ mm) | GY (0.8) 【Gravity】 |
FX (1.1), FF (1.4), EX (1.8) 【Gravity】 FF (1.4), EX (1.8) 【Suction】 |
FX (1.1), FF (1.4) 【Pressure】 |
| Pattern range (mm) | 100 | 250 | 300 |
| Air Consumption (NL/m) | 80 | 260 | 440 |
| Air inlet pressure (MPa) | 0.10 | 0.20 | 0.30 |
