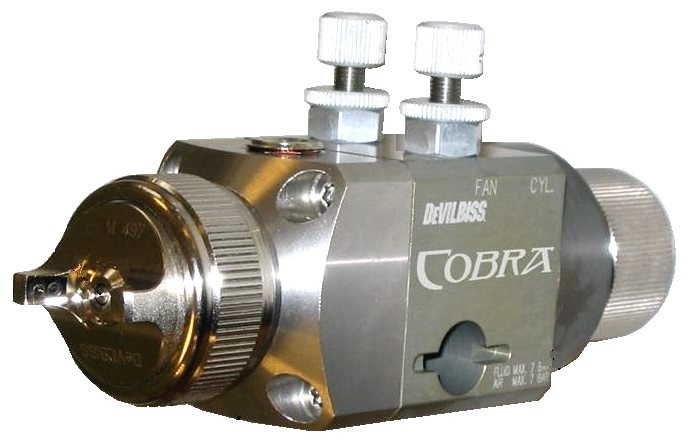

COBRA 1 (DeVilbiss automatic spray gun)
Model: COBRA 1
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Coating Equipment
Characteristics
【General industries】
• A completely new design of automatic spray gun, purpose made to provide a long working life in tough working conditions. COBRA 1 uses the very latest advances in atomising technology to provide users with a cost effective air atomising spray gun with many unique, patented features and benefits.
• Wide range of HVLP (High Volume Low Pressure), LVMP (Low Volume) and conventional air caps can be chosen, and all of them provide the best atomization performance on all applications.
• "Advanced conventional" air caps outperform the rest with uniquely designed high capacity airflow and outstanding atomization characteristics coupled with excellent product features.These advanced conventional air caps make COBRA 1 as the ideal gun for small operations or high volume industrial spraying, and the advanced conventional atomization will operate and atomize the most difficult spray materials.
• All of COBRA 1's brilliant features comply with the toughest EPA legislation.
• Provide considerable paint savings whilst producing the highest levels of atomization, high speed application with flow rates of up to 600 cc / minute or more.
• Removable stainless steel spray head for fast and easy maintenace.
• Control of spray performance and fluid flow is unequalled with the fluid adjusting knob (18 ratchet positions), allowing fine and accurate fluid flow control.
• To handle a wide range of coating materials such as water borne and solvent based materials, the material passages are manufactured from high grade stainless steel.
• Independent fan, atomising and triggering air which is important for robotic applications. Furthermore, it also applies to rotary machines, reciprocators and other automatic machines.
• Indexing air cap for consistent reproduction of spray pattern.
• Pressure feed material supply can be re-circulating or direct.
Specifications
| Maximum air pressure (MPa) | 0.70 (Fan and Atom) |
| Minimum to maximum cylinder actuating air (MPa) | 0.40 - 0.70 |
| Maximum operating ambient temperature (℃) | 40 |
| Fluid inlet | G 1/4 |
| Atomization air input | G 1/4 |
| Cylinder air inlet | G 1/8 |
| Pattern air inlet | G 1/4 |
| Gun body | Aluminium hard anodized |
| Tip / needle / spray head | Stainless steel 303 |
| Measurement (length x width x height, mm) | 135 x 45 x 63 |
| Weight (g) | 720 |
| Type | C. | C. | C. | HVLP | HVLP | LVMP | LVMP | LVMP | LVMP | LVMP | LVMP | LVMP | LVMP | LVMP | LVMP |
| Air cap No. | 430 | 443 | 470 | 497 | 500R | 505 | 510 | 513 | 515 | 520 | 522 | 523 | 590 | 590HV | 591 |
| Tip size (φ mm) | 0.85、1.0、1.2、1.4、1.6、1.8 | 0.5、0.7、0.85、1.0、1.2、1.4、1.8 | 2.2、2.8 | 0.5、0.7、0.85、1.0、1.2、1.4、1.6、1.8、2.2 | 0.85、1.4、1.6 | 0.85、1.0、1.2、1.4、1.6、2.2 | 0.85、1.0、1.2、1.4、1.6、1.8、2.2 | 0.85、1.0、1.2、1.4、1.6、1.8 | 0.85 | 0.85、1.0、1.2、1.4、1.6、1.8、2.2 | 1.0、1.2、1.6 | 0.5、0.7、1.0 | 0.5、0.7、1.0 | ||
| Pattern range (mm) | 200 | 300 | 420 | 380 | round | 270 | 270 | 350 | 320 | 350 | 150 | 150 | 120 | 150 | 280 |
| Air consumption NL/m (MPa) | 340 (0.35) | 345 (0.30) | 465 (0.30) | 510 (0.35) | 195 (0.10) | 385 (0.14) | 283 (0.20) | 531 (0.30) | 385 (0.20) | 410 (0.20) | 410 (0.20) | 218 (0.20) | 310 (0.20) | 218 (0.20) | 283 (0.20) |
