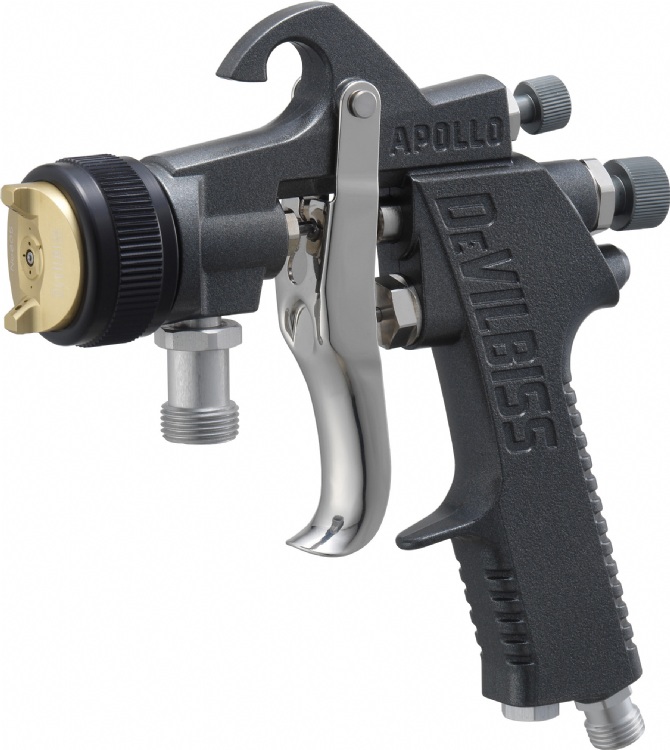

APOLLO (DeVilbiss spray hand gun)
Model: APOLLO-C / APOLLO-L
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Coating Equipment
Characteristics
APOLLO-C 【Automotive refinishing / General industries】:
• Ultra light, fine atomization, robust.
• Various combination types of air caps and fluid tips, and APOLLO uses quality trusted JGA air caps (conventional type) to achieve best atomization.
• The world's first magnesium gun body achieves ultra lightness.
• Employed PTFE coated gun body prevents from paint adhesion and easier to be cleaned.
• The fluid passage is made of anodized aluminum, compatible with all types of paints including waterborne. Comparing with stainless steel type, the weight is lighter.
APOLLO-L 【Automotive refinishing / General industries】:
• To ahieve high transfer efficiency, LVMP (Low Volume Medium Pressure) atomization is employed.
Specifications
APOLLO-C 【Type: Gravity / Suction / Pressure】
Atomization: Conventional
Air inlet: G 1/4
Fluid inlet: G 1/4 (Gravity); G 3/8 (Suction, Pressure)
Weight: 394 g
| Air cap No. | 43 | 64 | 186 | 704 | 705 | 765 | 777 | 797 | 799 |
| Type | Gravity, Suction | Pressure | Gravity, Suction | Pressure | Pressure | Pressure | Pressure | Pressure | Pressure |
| Tip size (φ mm) | FF (1.4), EX (1.8) | D (2.2) | FV (1.4), FW (1.6), EX (1.8) | G (0.7), FX (1.1), FF (1.4), E (1.8) | G (0.7), FX (1.1), FF (1.4) | FX (1.1), FF (1.4), E (1.8) | FX (1.1), FF (1.4), E (1.8) | FX (1.1), FF (1.4), E (1.8) | FX (1.1), FF (1.4) |
| Pattern range (mm) | 300 | 360 | 340 | 230 | 230 | 360 | 360 | 330 | 360 |
| Air consumption NL/m (MPa) | 291 (0.28) | 386 (0.28) | 274 (0.28) | 347 (0.28) | 344 (0.28) | 412 (0.35) | 487 (0.35) | 493 (0.35) | 493 (0.35) |
APOLLO-L 【Type: Gravity / Suction / Pressure】
Atomization: LVMP (Low Volume Medium Pressure)
Air inlet: G 1/4
Fluid inlet: G 1/4 (Gravity); G 3/8 (Suction, Pressure)
Weight: 367 g
| Air cap No. | 807 | 805 | 805MT | 110 |
| Type | Pressure | Pressure | Pressure | Suction, Gravity |
| Tip size (φ mm) | GD (0.7), DFX (1.1), DFW (1.6) | GD (0.7), G (0.7), DFX (1.1), DFW (1.6) | FX (1.1), FF (1.4) | FF (1.4) |
| Pattern range (mm) | 300 | 220 | 220 | 250 |
| Air consumption NL/m (MPa) | 280 (0.25) | 280 (0.25) | 280 (0.25) | 230 (0.20) |
