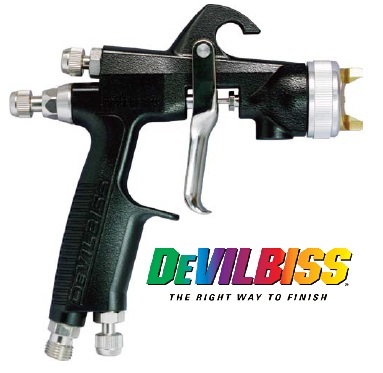

LUNA2 (DeVilbiss spray hand gun)
Model: LUNA2-R PLUS / LUNA2-K
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Coating Equipment
Characteristics
LUNA2-R PLUS¡iFor automotive refinishing¡j:
¡E Whole new designed air caps, applied to every spray condition. 244+, for metallic & pearl; 245+ applied to solid & clear. Furthermore, 246+, new developed air cap specially for primer with high quality performance.
¡E LVMP (Low Volume Medium Pressure) system developed by the DeVilbiss, high transfer efficiency which could reduce paint waste.
¡E Ultra durable, light weighted 'magnesium' gun body whose patent has been protected - the lightest spray gun in the world (253 g). Also, gun body coated with PTFE can repelpaint reducing clean time.
¡E New designed fluid tip provides improved fluid passage for less contamination on the air cap.
¡E User-friendly grip design enhances comfortability with an ideal weight balance for precise control and usability, which reduces work-fatigue.
¡E Newly designed air valve seal provides additional reinforcement against air leakage along with intensified durability.
LUNA2-K¡iFor general industries¡j:
¡E Durable and ultra light weight magnesium die-casting gun body (265 g) gives easy handling and user friendliness.
¡E PTFE coated gun body prevents paint contamination for easy maintenance.
¡E Ergonomically designed grip for comfortable handling.
¡E Newly designed air valve seal provides additional reinforcement against air leakage along with intensified durability.
¡E DeVilbiss' unique fluid tip with soft seat prevents fluid leakage from the tip.
¡E DeVilbiss' original LVMP air caps provide high transfer efficiency and fine atomization. Conventional type is also available.
Specifications
LUNA2-R PLUS¡iType: Gravity / Suction¡j
Atomization: LVMP (Low Volume Medium Pressure)
Air inlet: G 1/4
Fluid inlet: G 1/4
Weight: 253 g
Air cap No. | 244+ (metallic & pearl) | 245+ (solid & clear) | 246+ (primer) |
Tip size (mm) |
1.0, 1.3, 1.5, 1.8¡iGravity¡j 1.3, 1.5, 1.8¡iSuction¡j |
1.0, 1.3, 1.5, 1.8¡iGravity¡j 1.3, 1.5, 1.8¡iSuction¡j |
1.5, 1,8¡iGravity / Suction¡j |
Pattern range (mm) | 240 | 260 | 200 |
Air consumption L/m (bar) | 215 (2.0) | 215 (2.0) | 230 (2.0) |
------------------------------------------------------------------------------------------------------------------
LUNA2-K
Atomization: Conventional (air cap PL3) / LVMP (PL1 & PL2 air caps)
Air inlet: G 1/4
Fluid inlet: G 1/4
Weight: 265 g
Air cap No. | PL1 | PL2 | PL3 |
Tip size (mm) | GY (0.8), FX (1.1), FF (1.4) | GY (0.8), FX (1.1), FF (1.4) | GY (0.8), FX (1.1), FF (1.4) |
Pattern range (mm) | 170 | 220 | 220 |
Air consumption L/m (bar) | 205 (2.0) | 205 (2.0) | 240 (2.9) |
