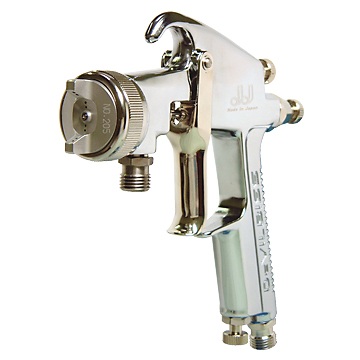

JJ (DeVilbiss spray hand gun)
Model: JJ (JGX-Junior)
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Coating Equipment
Characteristics
【Gravity / Suction: automotive refinishing and general industries; Pressure: general industries】
• JJ gun is built at super light weight of 330 g featuring finest atomization. It provides a quality finish with both metallic and pearl paints.
• Due to unique design of the air valve, the trigger pull force is constant, even with high input pressures. It provides the trigger pull with only 1.5 kg and this allows users to spray for a longer time without having stress.
• The fluid passage is made of stainless steel, compatible with all types of paints including waterborne.
• Perfect alignment between the air cap and the fluid tip is maintained through DeVilbiss' patended Ball and Cone principle, and therefore it provides excellent atomization as well as consistent and uniform spray patterns.
• For a harder, durable finish and ease of cleaning, plated gun body is employed.
Specifications
【Type: Gravity / Suction / Pressure】
Atomization: Conventional (air caps 203 and 243) / LVMP (Low Volume Medium Pressure: air caps 205 and 207)
Air inlet: G 1/4
Fluid inlet: G 1/4
Weight: 330 g
| Air cap No. | 203 | 243 | 205 | 207 |
| Type | Gravity | Gravity, Suction | Pressure | Pressure |
| Tip size (φ mm) | 0.8 |
1.0, 1.3, 1.5, 1.8 【Gravity】 1.3, 1.5, 1.8 【Suction】 |
0.8, 1.0, 1.3 | 0.8, 1.0, 1.3 |
| Pattern range (mm) | 100 | 250 | 250 | 300 |
| Air consumption NL/m (MPa) | 80 (0.10) | 220 (0.20) | 200 (0.20) | 200 (0.20) |
