Digital Impact Tester
Model: Digital Impact Tester
Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts
Characteristics

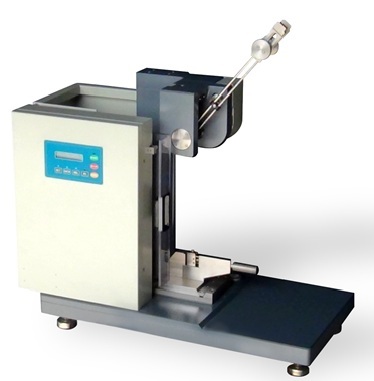

QC-639F(G) Digital Impact Tester
Confirm to ISO13802, DIN53453, ASTM D256, ISO180, ASTM D6110, ISO179 Standard
Specimen breaks through one time pendulum impact, specimen break needed energy reflect on pendulum’s loss energy, use pendulum potential energy to calculate impact strength. QC-639 Digital series impact testers that can proceed with parameters of abrasion loss, wind resistance and pendulum energy setting and calibration. High accuracy and easy operation, user can directly read test energy value from display.
Industry : Plastic
Specifications
| Model | QC-639F | QC-639G | |
|---|---|---|---|
| Izod type | Capacity: 1J、2.75J、5.5J、11J、22J | Capacity: 25J、50J | |
| Charpy type | Capacity: 1J、2J、5J、11J | Capacity: 25J、50J | |
| Energy loss | < 2.5% | ||
| Best test range | 10 ~ 90% of the pendulum capacity | ||
| Minimum display angle | 0.05° | ||
| Impact angle | 150° | ||
| Unit | J、J/mm、J/cm、J/mm²、J/cm²、KJ/m²、Kg-cm、Kg-cm/mm、Kg-cm/cm、ft-lb、ft-lb/in、ft-lb/in² | ||
| Power | Single phase 100 ~ 240 V | ||
| Dimension | 80 × 38 × 75 cm | 90 × 45 × 80 ㎝ | |
| Weight | 200 kg | 250 kg | |
