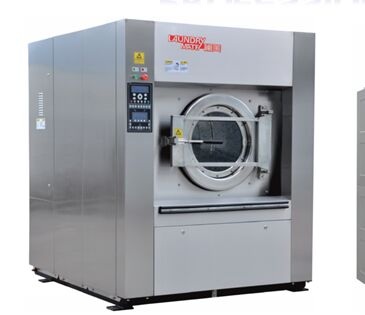

Industrial Washer Extractor
Model: XGQ
Category: Textile, Sewing, Garment Machinery & Industrial Equipments / Textile Machinery / Drying and Washing Equipment
Characteristics
1. Complete cabinet stainless steel AISI304
2. Minimum fault
3. Strong Bearing and Bearing House, cost efficient
and long life span
4. Stainless steel door frame
Specifications
Heavy Duty Construction and sealed industrial bearing for a longer lifespan and less wear
Complete Cabinet Stainless Steel AISI 304
Double-side polishing drum minimizes linen wearing
6 springs and 6-8 lateral shock absorbers for
minimum vibrations and noise
High quality cast aluminum Pulley for long life span
Double LCD screen computer display, 40 programs settable
Model |
XGQ-50F |
XGQ-80F |
XGQ-100 |
XGQ-120F |
Capacity |
50kg |
80kg |
100kg |
120kg |
Drum (Dia) |
950mm |
1110mm |
1200mm |
1300mm |
Inverter Power |
7.5kw |
11kw |
11kw |
15kw |
Motor Power |
5.5kw |
7.5kw |
7.5kw |
11kw |
Washer Speed |
40rpm |
40rpm |
36rpm |
36rpm |
Spin Speed |
760rpm |
700rpm |
670rpm |
640rpm |
G-Factor |
307 |
304 |
301 |
298 |
Steam Consumption |
40kg |
70kg |
85kg |
100kg |
Water Consumption |
0.8m³ |
1.1m³ |
1.1 m³ |
1.3 m³ |
Power Consumption |
0.95 kw/h |
1.1kw/h |
1.1 kw/h |
1.3 kw/h |
Cold/hot water inlet |
1 ½” |
1 ½” |
1 ½” |
2” |
Steam Pressure |
3-8 bar |
3-8bar |
3-8bar |
3-8bar |
Steam Inlet |
1” |
1” |
1” |
1” |
Power supply |
380-415V50hz/3P, 220V/60HZ/3P |
|||
Drain Size |
Ø160 |
Ø160 |
Ø160 |
Ø160 |
Dimension (mm) |
1470x1735x1958 |
1543x1834x2000 |
1754x1893x1958 |
1860x1980x2080 |
