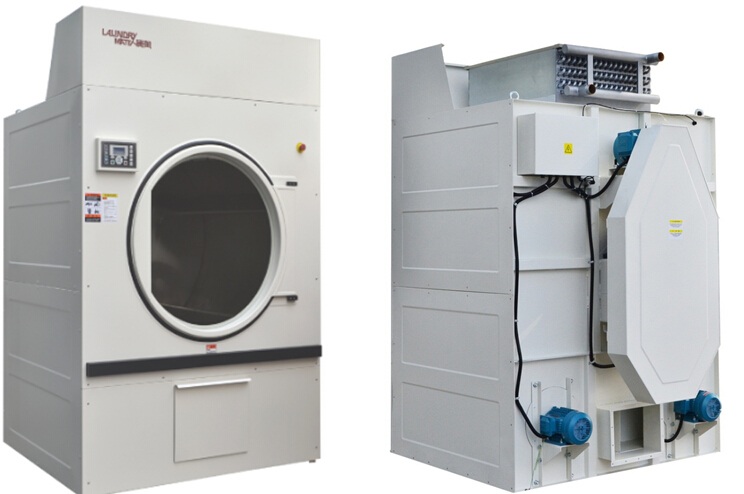

Professional Tumble Dryer
Model: LM
Category: Textile, Sewing, Garment Machinery & Industrial Equipments / Textile Machinery / Dryers
Characteristics
1. High lift rids for no twisting
2. Unique isolation for saving energy
3. Big size dryer lint collector saving cleaning labor
4. Supper wide door for easy operation
Specifications
² High grade stainless steel drum with high lift ribs for not twining of drying linen
² Advanced microprocessor contorller, 6preset programs, various temperature, time and rotating direction settable.
² Large size heat element for fast thermal for saving time
² Outer tub and front panel with thick isolution for keeping temperature to save eneygy.
² Heavy-duty bearings in strong bearing housing, welded square steel fram base
² Large visual glass door, easy to load /unload and resistant to high temperatures
² Big size drawer type lint collector, easy to mainten and clean.
² Unique design of structure of cabinet provide best airflow
² Equipped with gated sercritly linkage and independent emergency switch-Safety
Specification:
Model |
LM-15F |
LM-25F |
LM-35F |
LM-50 |
LM-70 |
LM-100 |
Capacity |
15kg |
25kg |
35kg |
50kg |
70kg |
100kg |
Drum Size |
720x650mm |
940x740mm |
940x915mm |
1120x1070mm |
1270x1125mm |
1450x1220mm |
Motor Power |
0.37kw |
0.55kw |
0.55kw |
1.1kw |
1.5kw |
2.2kw |
Fan Motor Power |
0.55kw |
0.55kw |
0.55kw |
2.2kw |
3kw |
1.5x2kw |
Heater of Electric type |
15kw |
23kw |
27kw |
36kw |
60kw |
80kw |
Speed |
43rpm |
38rpm |
38rpm |
32rpm |
32rpm |
30rpm |
Steam Consumption |
25kg |
40kg |
50kg |
80kg |
100kg |
120kg |
Air Exhaust |
800 m²/h |
1200 m²/h |
1800 m²/h |
3500m²/h |
3900 m²/h |
4000 m²/h |
Steam inlet |
DN25 mm |
DN25mm |
DN25mm |
DN25 mm |
DN25 mm |
DN25 mm |
Power supply |
380-415V/50hz/3P, 220V/60hz/3P |
|||||
Size(mm) |
765x1070x1645 |
980x1090x1930 |
980x1290x1950 |
1200x1650x2220 |
1445x1780x2410 |
1590x1870x2510 |
