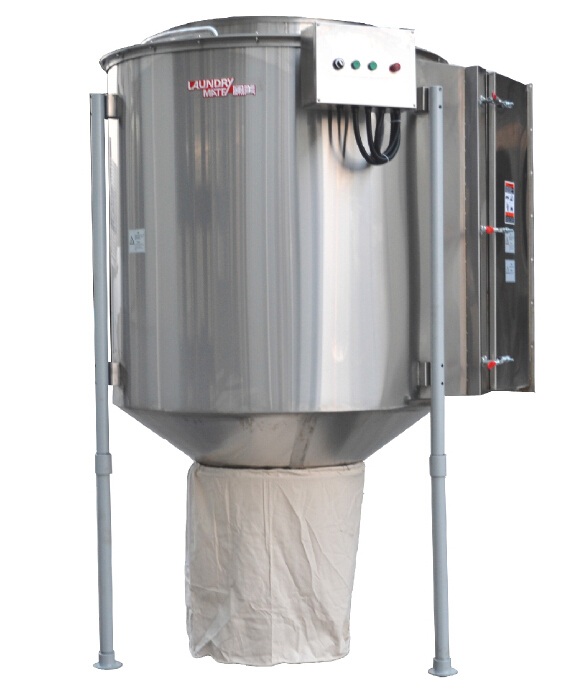

Lint Collector for laundry dryer
Model: FA
Category: Textile, Sewing, Garment Machinery & Industrial Equipments / Textile Machinery / Dryers
Characteristics
1. Clean the laundry area condition
2. Easy to operate,save labor
3. Water spray, over heat/fire protection
Specifications
Feature:
² Improved laundry area environment, 95％ lint in the air got filtrate.
² Size: 10000-50000m³/h, customized is available.
² Water spray, over heat/fire protection
² Stainless steel construction with stainless lint screen
² Air reservoir, dryer mounted, reduces burden on plant compressed air system
² Easy maintenance increased efficiency
Specification:
|
Model |
Unit |
FA-9 |
FA-13 |
FA-15 |
FA-20 |
|
Max Airflow |
Cfm/m³h |
9000 /15000 |
13000/22000 |
15000/25000 |
20000/33700 |
|
Filter Surface |
m² |
3.2 |
3.5 |
4.5 |
4.5 |
|
Power Inlet |
mm |
Ø22 |
Ø22 |
Ø22 |
Ø22 |
|
Air Pressure |
bar |
6-8 |
6-8 |
6-8 |
6-8 |
|
Water Inlet |
inch |
ZG1/2” |
ZG1/2” |
ZG1/2” |
ZG1/2” |
|
Weight |
kg |
130 |
150 |
175 |
225 |
