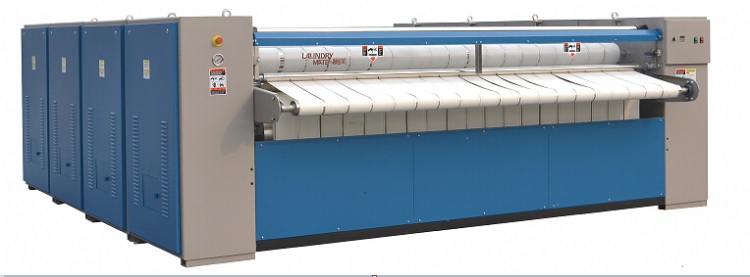

Flatwork Ironer
Model: YZ
Category: Textile, Sewing, Garment Machinery & Industrial Equipments / Textile Machinery / Drying and Washing Equipment
Characteristics
1. Working roller and axis are made of 304 Stainless
2. Air pressure alarm system
3. Precised Seamless axis
Specifications
² Working roller and axis are made of 304 Stainless steel, and Optimal design for efficient ironing.
² Big main bearing and oil feeding system, long life spend and easy to maintain.
² Pressure controller for well controlling of steam inlet
² Roller quantity is changeable according to the space
² Crystal baffle plate and sensitive limited switch in feeding area for safety operation
² Several emergency switch around the machine for safety operation
Rollers: 1-6 roller available
Specification:
Model |
YZI2500 |
YZI2800 |
YZI3000 |
YZII2800 |
YZII3000 |
YZIII3000 |
Roller |
1 |
1 |
1 |
2 |
2 |
3 |
Heating |
Steam/Electric |
Steam/Electric |
Steam/Electric |
Steam/Electric |
Steam/Electric |
Steam/Electric |
Roller(Dia) |
Ø800mm |
Ø800mm |
Ø800mm |
Ø800mm |
Ø800mm |
Ø800mm |
Work Wide |
2500mm |
2800mm |
3000mm |
2800mm |
3000mm |
3000mm |
Speed |
0-10m |
0-10m |
0-10m |
0-25m |
0-25m |
0-30m |
Motor Power |
1.1kw |
1.1kw |
1.1kw |
1.5kw |
1.5kw |
2.1kw |
Steam Inlet |
40mm |
40mm |
40mm |
40mm |
40mm |
40mm |
Steam cons |
100 Kg/h |
110 Kg/h |
120 Kg/h |
200 Kg/h |
220 Kg/h |
310 Kg/h |
Heater of Electric type |
24kw |
25kw |
30kw |
56kw |
60kw |
|
Steam Pressure |
4-6 bar |
4-6 bar |
4-6 bar |
4-6 bar |
4-6 bar |
4-6 bar |
Water outlet |
20mm |
20mm |
20mm |
20mm |
20mm |
20mm |
Power |
380-415V/50hz/3P, 220V/60hz/3P |
|||||
Size (mm) |
3700x1345x1420 |
4000x1430x1420 |
4200x1435x1420 |
4000x2385x1420 |
4200x2385x1420 |
4500x3335x1420 |
Weight |
1600kg |
1650kg |
1700kg |
3100kg |
3200kg |
4000kg |
