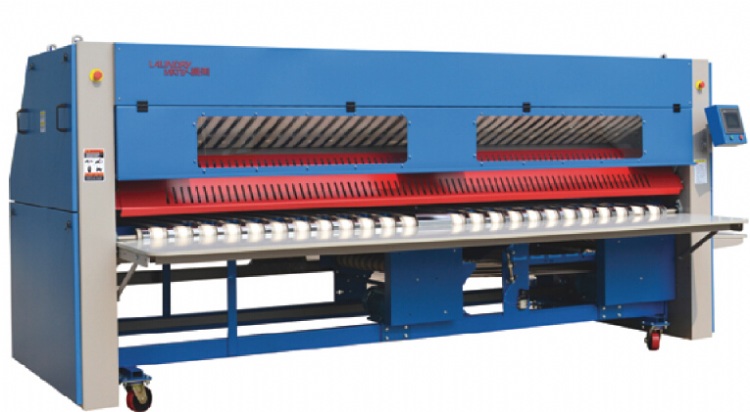

Professional Flatwork Folding Machine
Model: LMF
Category: Textile, Sewing, Garment Machinery & Industrial Equipments / Textile Machinery / Drying and Washing Equipment
Characteristics
1. Triple converter control each folding motor,
2. Max speed is 60m/min
Specifications
Feature:
² Triple Inverter control each folding motor, easy to adjust and reliable performance
² Excellent pneumatic component ensure high speed smooth running
² Max speed is 60m/min, could match with any highest speed ironer.
² Automatic copper antistatic device remove the electrostatics efficiency
² Imported clutch brakes fast start and stop, perfect for high-speed operation
² Self-adjustable friction roller, easy to take out linen if any fault without any damage
² The roller is make of precise seamless steel tube, precise and reliable performance
Specification:
Model |
Unit |
LMF-30 |
LMF-33 |
Working Wide |
mm |
3000 |
3300 |
Folding Method |
|
2+3 |
2+3 |
Max Speed |
m/min |
60 |
60 |
Power Consumption |
kw |
1.65 |
1.65 |
Compressed Air Inlet (Dia) |
inch |
1/2” |
1/2” |
Compressed Air outlet |
inch |
1/4” |
1/4” |
Power Input Height |
mm |
355 |
355 |
Compressed Air Consumption |
l/min |
170 |
210 |
Dimension |
mm |
3650x1770x1780 |
3950x1770x1780 |
