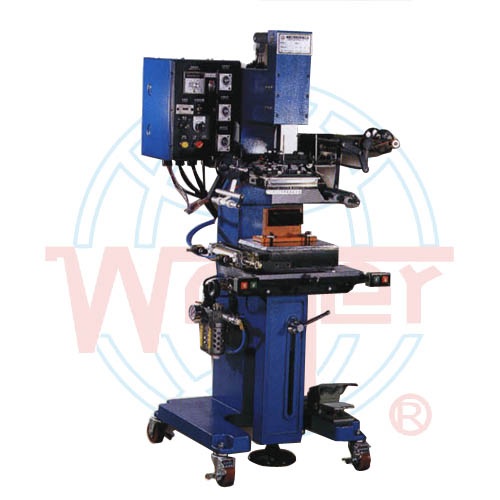

Hot stamping machine for flat surface
Model: WE-AC3
Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Hot Stamping, Printing & Embossing Machines
Characteristics
1. Manual feeding, manual outfeeding.
2. Main spindle are precision ground and can operate at low pressure.
3. 3 timer countrols for better performance, 1 for pressure time, 1 for delay time, 1 for foil feed adjustment.
4. Single arm device with Max. pressure 2000KG.
5. Connecting other peripheral equipment for th automatic printing.
6. Specially designed heater is easy up to 400J
Specifications
1. Max. Pressure: 3000Kg
2. Work Table: 280*380(mm)
3. Max. Head Stroke: 60mm
4. Max. Opening: 280mm
5. Enter Distance: 200mm
6. Power Supply: 1 phase, 200~240V
7. Impression Area: 120*180(mm)
8. Temperature: 0~400J
9. Air Source: 2HP
10. Net weight: 190Kg
11. Gross weight: 240Kg
12. Machine dimension: 650*650*1500(mm)
13. Packing dimension: 720*720*1650(mm)
