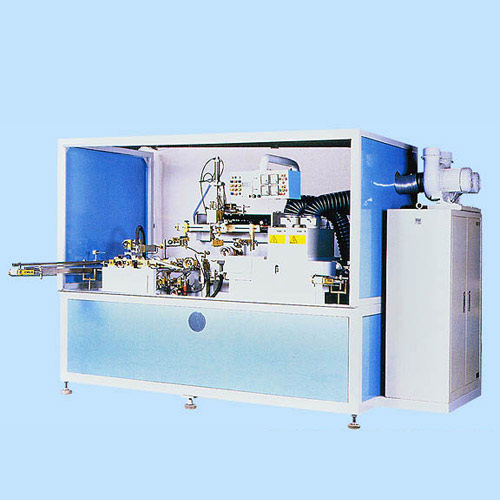

Automatic Universal Screen Printer Single Color
Model: WE1-400TR
Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Screen Printing Machines
Characteristics
◎WE1-400TR is a universal automatic screen printing machine for all kinds of bottle shapes (including cylindrical, oval and flat bottles). This prototype module is designed as the basic for multi-color screen printers, it can ensure high quality, best performance and reliable output of multi-color printings with minimum running cost.
◎Multi-colour lines are available upon request.
Specifications
Applications:For all kinds of plastic containers. (Including cylindrical, oval and flat bottles.)
Power Consumption : Approx. 3KW 220V, 60HZ, 3PHASES (Without UV Dryer)
Air Consumption : Approx. 300 1/min
Gas Consumption : Approx. 2.2 1/min
Output speed : 3,000 - 5,400 cycles / hr
Article Length : 30 ~ 300 (mm)
Round Printing (Article Dimension / Image Length) : Max. 100 / Max. 320 (mm)
Oval Printing (Width / Height / Radius) : 20 ~ 180 / 20 ~ 120 / 30 ~ 220 (mm)
Flat Printing (Width / Height) : MAX.160 / MAX.120 (mm)
Machine Dimensions (L x W x H) : 3,050 x 1,550 x 2,000(mm)
Machine Weight : Approx. 1,950 kgs
