Automotive Part (Aluminum)
Model: A/C Bracket
Category: Mold and Die Industry / Die Casting Molds / Motor accessories
Characteristics

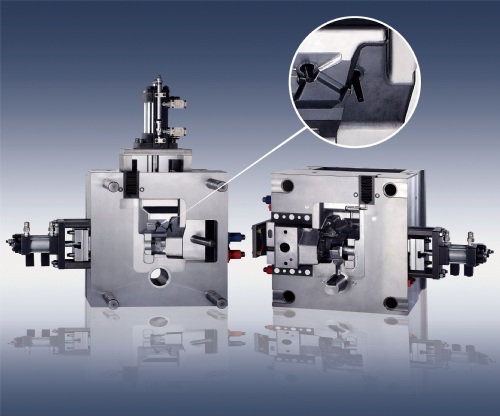

This mold has two slides, one activated by angle lifter and the other by hydraulic cylinder. It is installed two hydraulic cylinders on fixed half and one on moving half. One cylinder on fixed half activates an angle pin to form an angle hole, and the cylinder which activates the angle pin is designed as verticle with two-step inside movement to activate the angle pin, so as to shorten the mold size to fit into customer's smaller casting machine.
Specifications
Part: Automotive parts (under bonnet)
Casting Machine: 400Tons
Material: A380
Mold Weight: 2.06 Tons
Steel of Core/Cavity: Uddeholm DIEVAR
Component Spec.: DME (metric system)
No. of Slide: 1 pcs by angle lifter, 1 pcs by hydraulic cylinder.
No. of Hydraulic Cylinder: 3 pcs
Special Feature: cylinder pushes the angle slide.
