Support Bracket (Aluminum)
Model: Main Link
Category: Mold and Die Industry / Die Casting Molds / Telecommunications
Characteristics

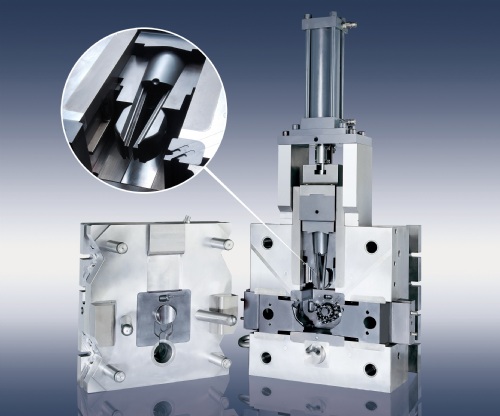

This mold has a big inside hollow space, which is actually a big undercut. So, the mold is designed with two slides activated by angle pins and one specially designed collapsible core. This mold works very good and saves a lot of production cost.
Specifications
Part: Support Bracket
Casting Machine: 650Tons
Material: ADC12
Mold Weight: 2.26 Tons
Steel of Core/Cavity: Uddeholm DIEVAR
Component Spec.: Hasco (metric system)
No. of Slide: 2 pcs by angle lifter, 1 pcs by hydraulic cylinder.
No. of Hydraulic Cylinder: 1 pcs
Special Feature: collapsible core makes the spherical hollow.
