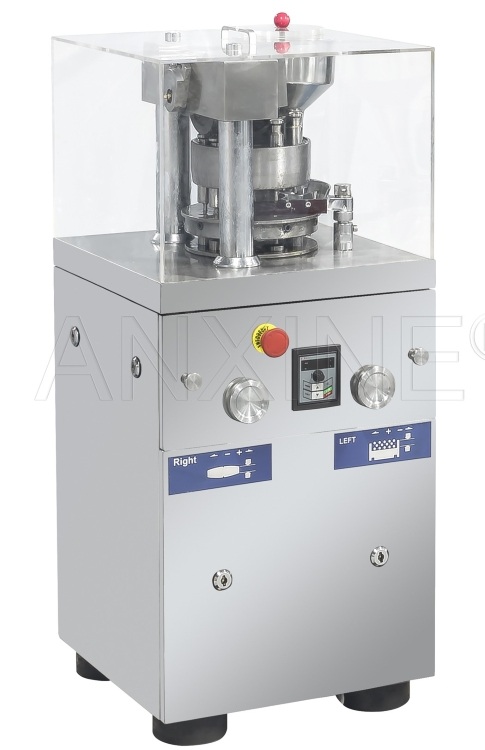

Rotary Tablet Press Machine
Model: ZP-9
Category: Packaging, Printing, Food & Pharmacy Machinery / Food & Pharmacy Machinery / Pressing machine
Characteristics
The ZP-9 is a compact rotary tablet press designed for small-batch tablet production. It is suitable for pharmaceutical, nutraceutical, chemical, laboratory, and R&D applications. The machine compresses powder or granules into round, shaped, or engraved tablets, with a tablet diameter of 4–12 mm and a thickness of up to 6 mm. It features a fully enclosed stainless steel housing and meets GMP cleanliness requirements. Pressure, speed, filling volume, tablet thickness, and hardness can all be adjusted. The maximum pressure is 40 kN, and the output can reach up to 21,600 tablets per hour. It also comes with a touchscreen, supports multiple languages, and is designed for easy cleaning and maintenance.
Specifications
| Punch quantity | 9 Set |
| Max Output | 16,200 pcs/h |
| Max Tablet Pressure | 40 kN |
| Max Tablet Diameter | 12 mm |
| Max Tablet Thickness | 6 mm |
| Max Filling Depth | 15 mm |
| Turntable Working Diameter | 200 mm |
| Turntable Speed | 0-40 r/min |
| Middle Punch | Diameter 26mm Height 22mm |
| Lower Punch | Diameter 22mm Length 115mm |
| Max Filling Depth | 15 mm |
| Overall Dimensions | Length: 475mm Width: 465mm Height: 1,030mm Weight: 230kg |
