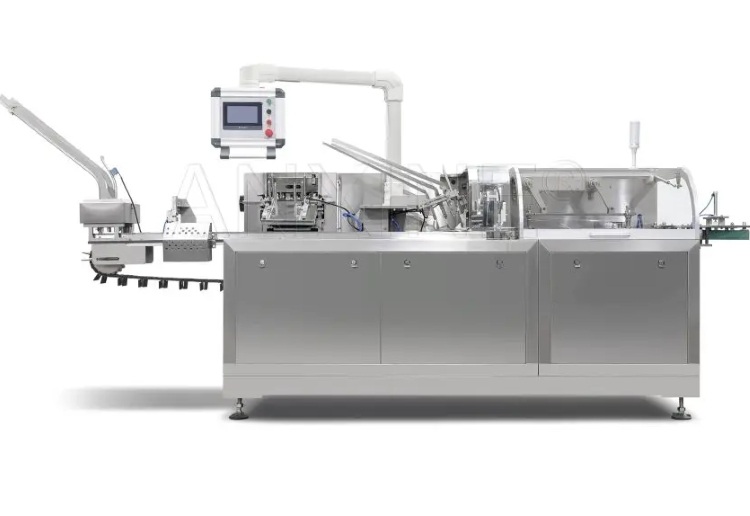

Automatic Cartoning Machine
Model: DZH-100
Category: Packaging, Printing, Food & Pharmacy Machinery / Food & Pharmacy Machinery / Cartoning Packaging Machine
Characteristics
The DZH-100 is an automatic cartoning machine mainly used for carton packaging in the pharmaceutical and food industries. It is suitable for packing blister packs, bottles, tubes, and pouches into cartons of different sizes. The machine can automatically complete carton opening, product loading, flap folding, and carton sealing. Its high level of automation helps reduce manual labor, improve packaging efficiency, and keep the final package neat and consistent. It also features a touchscreen control panel for easy parameter setting, status monitoring, and fault diagnosis, along with safety devices such as an emergency stop button and protective doors.
Specifications
| Carton | Quality Requirement: 300-350g/m² Size Range: (80-180)mm*(30-95)mm*(15-50)mm |
| Instruction Manual | Quality Requirement: 70-80g/m² Unfolded Size Range: (90-180)mm * (130-240)mm Folded Size Range: (90-170)mm * (25-40)mm |
| Cartoning Speed | 380V 50Hz 3P |
| Power Supply | 1/4HP 15:1 |
| Compressed Air | Working Pressure ≥0.6 MPa Air Consumption ≥0.16m³/min |
| Dimensions | 3,200 x 1,150 x 1,700 mm |
| Weight | Approximately 1400kg |
