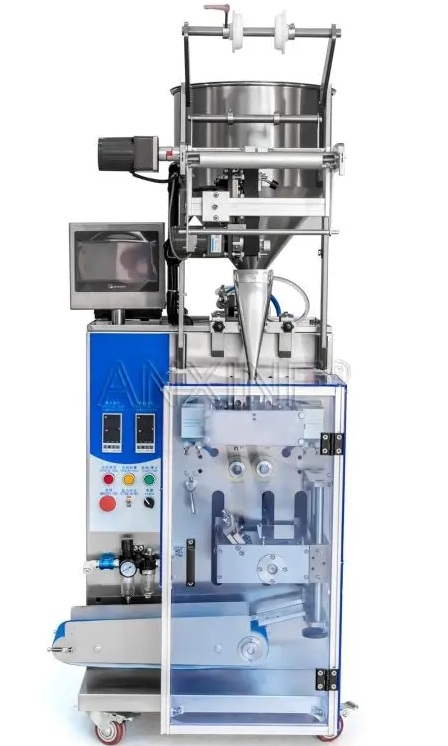

Automatic Powder Packaging Machine
Model: VFSS-50P
Category: Packaging, Printing, Food & Pharmacy Machinery / Food & Pharmacy Machinery / Vertical Packaging Machine
Characteristics
The VFSS-50P is a vertical powder back-seal packaging machine. It is suitable for the pharmaceutical and food processing industries. It is mainly used for automatic packaging of powder products, such as pharmaceutical powders and food additives.
The machine can automatically complete feeding, measuring, bag forming, filling, sealing, cutting, and counting. It forms back-seal bags from packaging film, but the specific film material is not stated in the provided information.
It uses stepper motor control and photoelectric detection. Bag length and speed can be adjusted, and the sealing temperature stays stable. The machine also features low-material shutdown, fault indication, easy maintenance, and stable operation.
Specifications
| Packaging Materials | PE, PP, PET, aluminum foil composite film, etc. |
| Packing Speed | Up to 60 bags/min |
| Bag Size | Length: 50-200 mm, Width: 50-150 mm |
| Compressed Air | 0.6 MPa, air consumption 0.3 m³/min |
| Power Supply | AC220V/50Hz or AC110V/60Hz, 1.5 kW |
| Weight | 350 kg |
| Dimensions | 1200 × 700 × 1800 mm |
