Inclined Screw Feeder
Model: HZF-S2 Series
Category: Packaging, Printing, Food & Pharmacy Machinery / Food & Pharmacy Machinery / Conveying Equipment
Characteristics

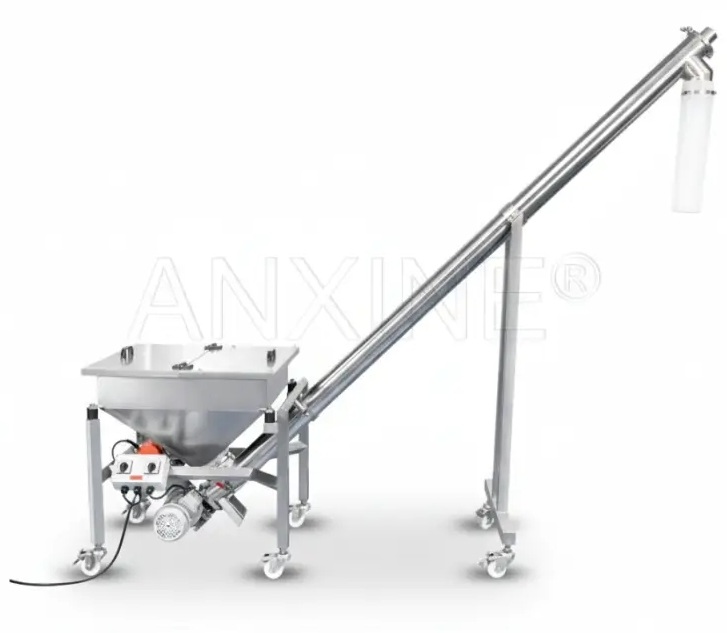

The HZF-S2 Series Vibrating Inclined Screw Conveyor is designed for conveying bulk powder materials. It is suitable for powders with different flow properties, such as milk powder, sugar, solid pharmaceuticals, and feed additives.
The machine comes with a vibrating hopper and an inclined screw, helping materials feed smoothly into the screw and reducing clogging. The conveying angle, tube length, and hopper size can be customized. It also supports reverse running to discharge residue, making cleaning and maintenance easier. The unit can be used alone or integrated with other equipment.
Specifications
| Model | HZF-S2-2K | HZF-S2-3K | HZF-S2-5K | HZF-S2-7K | HZF-S2-8K | HZF-S2-12K |
| Lifting Speeds | 2 m³/h | 3m³/h | 5m³/h | 7m³/h | 8m³/h | 12m³/h |
| Feeding Tube Diameters | φ102 | φ114 | φ141 | φ159 | φ168 | φ219 |
| Total Power | 0.58kW | 0.78kW | 1.53kW | 1.53kW | 3.03kW | 4.03kW |
| Total Weight | 100kg | 130kg | 170kg | 200kg | 220kg | 270kg |
| Hopper Capacity | 100L | 200L | 200L | 200L | 200L | 200L |
| Power Supply | 3P AC 208-415V, 50/60Hz |
| Lifting Angle | Conventional at 45 degrees, customizable from 30 to 60 degrees |
| Lifting Height | Conventional at 1.85 meters, customizable between 1-5 meters |
| Hopper Shape | Standard square, customizable to circular or other configurations |
