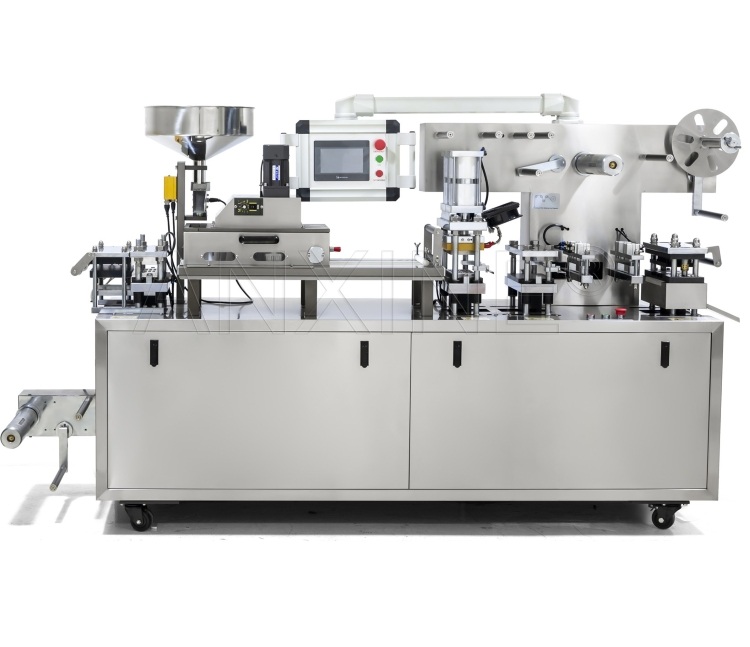

Blister Packing Machine
Model: DPP-140
Category: Packaging, Printing, Food & Pharmacy Machinery / Food & Pharmacy Machinery / Blister Packaging Machine
Characteristics
The DPP-140 is a flat-plate blister packing machine for pharmaceutical packaging. It can pack capsules, tablets, sugar-coated pills, honey pills, injections, and ampoules. The machine automatically completes film unwinding, blister forming, feeding, sealing, perforating, and cutting. It uses flat heating to heat the PVC material evenly, and it is equipped with a PLC control system and pneumatic rollers for accurate and efficient operation. The speed is adjustable, and it can handle different blister sheet sizes. The forming and sealing molds are easy to change. With a filling accuracy of over 99.5%, the machine is lightweight, easy to move and maintain, and suitable for medium to high-volume continuous production.
Specifications
| Cutting Frequency | 10-50 times/min |
| Capacity | 7200 strips/hour |
| Max Shaping Areas and Depth | 140x120x28 mm |
| Air Pressure | 0.4-0.6 MPa |
| Power Supply | 380V/220V 50Hz |
| PVC Hard Pieces | 0.15-0.5×140 mm |
| PTP Aluminum Foil | 0.02-0.035×140 mm |
| Dialysis Paper | 50-100g×140 mm |
| Mould Cooling | Tap or back water |
| Dimensions | 2050×526×1320 mm |
| Weight | 960 kg |
