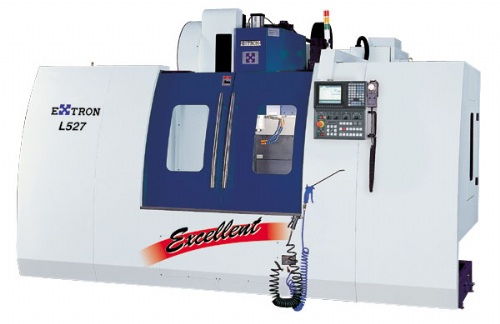

Vertical Machining center
Model: L262/L321/L323/L421/L423/L527
Category: Machine Tools / Machining Centers / Machining Centers, Vertical
Characteristics
*High quality rigid Meehanite casting.
*The bottom of column is Y shaped design to support machine stability.
*All axis direct drive design to ensure the least backlash and long lasting accuracy.
*High quality precision double nut C3 class and pretension ball-screw ensure highly accuracy.
*High precision Linear guide way on X,Y & Z axis to support quickly rapid feed / movement.
*The spindle frame tough steel alloy and precision machining, Equipped with 3 sets of bearing(except L262 & L321 are 2 sets) to ensure the spindle run-out less than 0.003mm.
*Belt drive spindle fitted with oil chiller to ensure the life.
*Counter-weight balancing design on Z axis.
Specifications
L262
Table size: 30X18(760x456mm)
X travel: 26(660mm)
Y travel: 18(460mm)
Z travel: 20(510mm)
L321
Table size: 35.1X18(900x456mm)
X travel: 31(800mm)
Y travel: 20(510mm)
Z travel: 24(610mm)
L323
Table size: 36.6X20(930x502mm)
X travel: 34(860mm)
Y travel: 21(540mm)
Z travel: 26(660mm)
L421
Table size: 42.5X20(1090x502mm)
X travel: 40(1020mm)
Y travel: 21(540mm)
Z travel: 26(660mm)
L423
Table size: 46.8X20(1200x510mm)
X travel: 41(1060mm)
Y travel: 24(610mm)
Z travel: 27(680mm)
L527
Table size: 60X27(1520x700mm)
X travel: 52(1320mm)
Y travel: 28(710mm)
Z travel: 27.3(700mm)
