ARTICULATED HEAD MACHINING CENTER
Model: SU-85/HU86/VH-119U
Category: Machine Tools / Machining Centers / CNC 5-Axis Machining Centers
Characteristics
*Rigid Meehanite casting for high rigidity.
*High precision C3 class ball-screw w/-double nuts and pre-tension design to ensure the highly accuracy and least backlash.
*All axis used direct drive and linear guide way design.
*Non counter-Weight balancing system design to support axis quickly rapid and movement smoothly.
*Horizontal and vertical machining are available in one machine.
(HU-86、VH-119U)
*Machine can support for 4+1 & 5 axis simultaneous by different control software.(SU-85、VH-119U)
*High torque and build-in 15000rpm spindle.(SU-85、VH-119U)
*Hight speed 15000rpm direct drive spindle design on machine.
Specifications

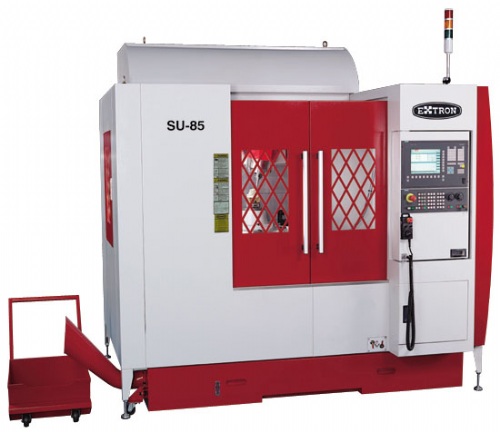

SU-85
Table size: 36.6”X19.6”(930x500mm)
X travel: 33.8”(860mm)
Y travel: 21.2”(540mm)
Z travel: 25”(630mm)
HU-86
Table size: 36.6”X20”(930x500mm)
X travel: 33.8”(860mm)
Y travel: 31.9”(810mm)
Z travel: 24.6”(625mm)
VH-119U
Table size: 27.5”X27.5”(700x700mm)
X travel: 43.3”(1100mm)
Y travel: 35.4”(900mm)
Z travel: 27.5”(700mm)
