CNC MILLING MACHINE
Model: E216/E3C/E320/E422/E526
Category: Machine Tools / Milling Machines / CNC Milling Machines
Characteristics
*Rigid Meehanite casting.
*Slide ways are coated with Turcite B.
*Heavy square (box) ways provide maximum rigidity and stability.
*High precision C3 class ball-screw on all axis.
*Hardened and Ground square way on all axis.
*Belt drive system, that fits smaller motor.
*Rigid four slide way design on base (Except E216 is two slide way).
Specifications
E216
Table size: 34.6”X14.2”(880x360mm)
X travel: 26”(660mm)
Y travel: 16”(410mm)
Z travel: 20”(510mm)
E3C
Table size: 41”X16”(1040x405mm)
X travel: 34”(860mm)
Y travel: 16”(410mm)
Z travel: 20”(510mm)

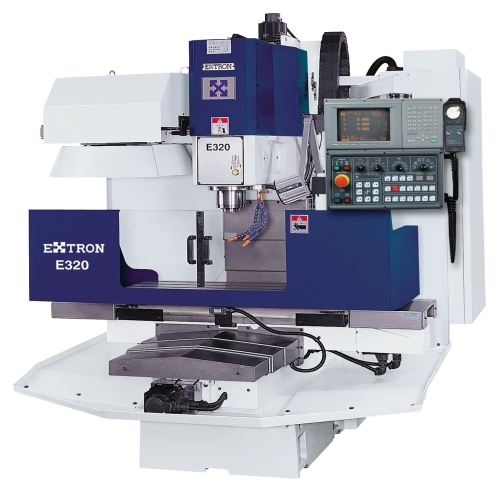

E320
Table size: 41”X16”(1040x405mm)
X travel: 34”(860mm)
Y travel: 20”(510mm)
Z travel: 24”(610mm)
E422
Table size: 48.8”X12”(1240x460mm)
X travel: 42”(1060mm)
Y travel: 22”(560mm)
Z travel: 24”(610mm)
E526
Table size: 60”X20”(1520x510mm)
X travel: 52”(1320mm)
Y travel: 26”(660mm)
Z travel: 27.5”(700mm)
