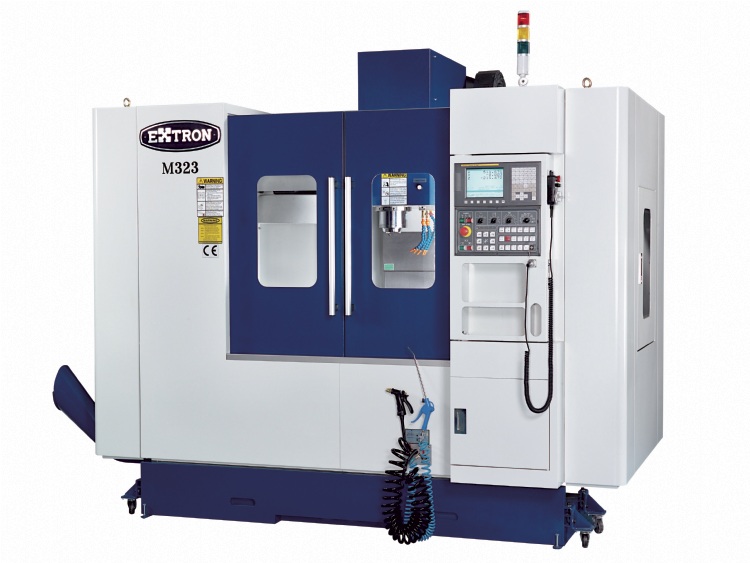

VERTICAL MACHINING CENTER
Model: M323
Category: Machine Tools / Machining Centers / Machining Centers, Vertical
Characteristics
*Rigid Meehanite casting.
*Slide ways are coated with Turcite B.
*Heavy square (box) ways provide maximum rigidity and stability.
*Four slide ways design on base.
*Hardened and Ground square (box) way on all axis.
*High precision C3 class ball-screw on all axis.
*The axis motors are directly coupled to ballscrews (except M632).
it ensures the least backlash and long lasting accuracy.
*Pre-tension ball-screw ensures highly accuracy.
*The rapid feed on X & Y axis are 20M/min, Z is 15M/min.(except M632).
*Spindle w/-oil cooling system to ensure the life.
Specifications
M323
Table size: 930x460mm
X travel: 860mm
Y travel: 510mm
Z travel: 610mm
