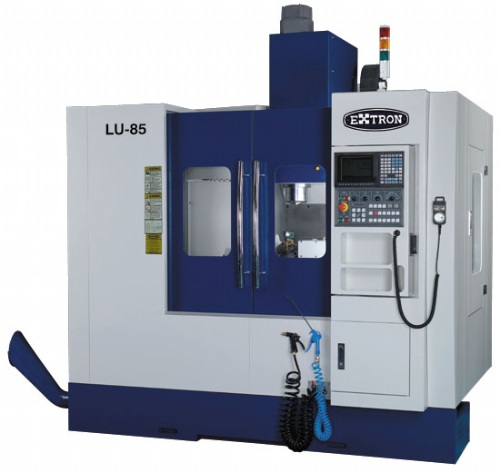

ARTICULATED HEAD MACHINING CENTER
Model: LU-85
Category: Machine Tools / Machining Centers / CNC 5-Axis Machining Centers
Characteristics
*Main frame high quality rigid meehanite cast iron for machine stability.
*High precision C3 class ball-screw with double nuts and pre-tension design to ensure the highly accuracy and least backlash.
*All axis used direct drive and linear guide way design.
*High speed 15000rpm direct drive spindle design on machine.
*Machine can support for 3, 4+1 and 5 axis simultaneous by different control software.
*Non-counter-weight balancing system design to support quickly rapid and movement smoothly.
Specifications
Table size:36.6"x19.7"(930x500mm)
X travel:33.8"(860mm)
Y travel:21.8"(540mm)
Z travel:30.3"(770mm)
