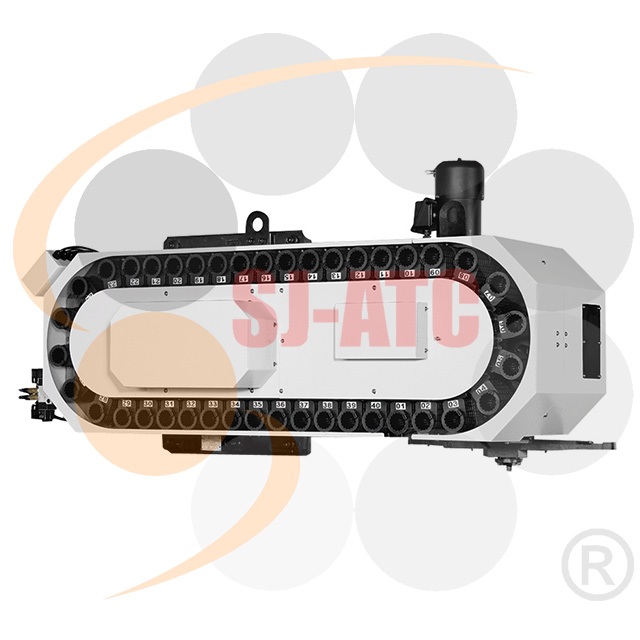

CHAIN TYPE TOOL MAGAZINE
Model: CV
Category: Machine Tools / Machining Centers / Machining Centers, Vertical
Characteristics
◆ The tool magazine is a flattened transmission design that not only eliminates the problem of installation on the machine, but also runs continuously to avoid chain loosening due to intermittent running. In addition, the front-mount chain positioning mechanism ensures high positioning accuracy of the tool pocket.
Specifications
| Magazine Specification | 40# | 50# |
| Tool Specification | BT/CAT/DIN/ISO/HSK A/E series | |
| Tool loading capacity | 32/40 | |
| Max. tool length | 350mm | 400mm |
| Max. tool diameter full tool | φ75mm | φ125mm |
| Max. tool weight | 8kg | 16kg |
| Tool indexing time | 0.7sec/50HZ ; 0.6sec/60HZ | 1sec/50HZ ; 0.9sec/60HZ |
| Tool change time (Excluding tool clamp or unclamp time) |
1.6sec/50HZ ; 1.3sec/60HZ | 3.6sec/50HZ ; 3sec/60HZ |
| Tool selection | Shortest route tool selection | |
| Driving voltage | 3φ 220V/380V | |
| Air source pressure | 5kg/cm2 | |
