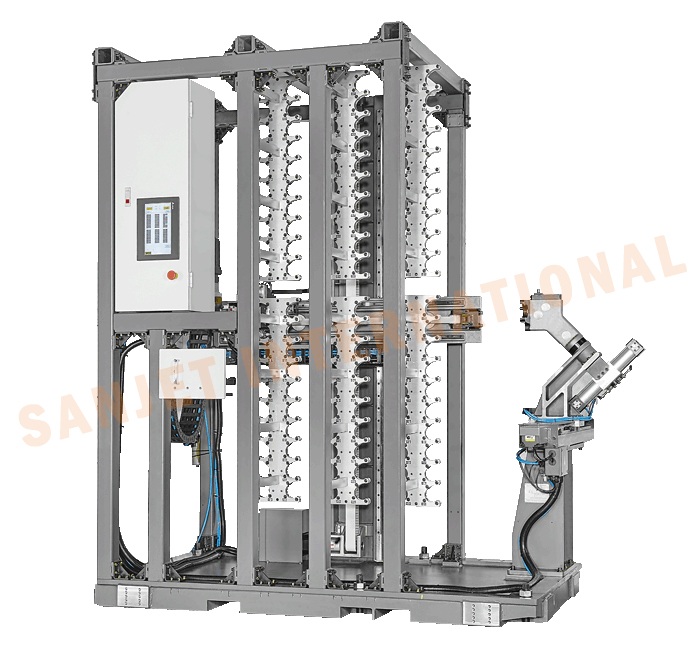

MATRIX TOOL MAGAZINE
Model: MM
Category: Machine Tools / Machining Centers / Machining Centers, Vertical
Characteristics
◆ Matrix magazine can be increased in response to customer needs, reducing the loading capacity of the magazine.
◆ Horizontal matrix magazine arrangement is arranged through the switch between horizontal and vertical mechanism. It can work with a vertical machine.
◆ Sanjet integrates all tool changing movements and pick and place action, only I / O signal is required to complete the tool changing action.
◆ With the HMI operator panel, a specially designed drawer-type pick and place mechanism allows easy access to the operator panel and with the view of the tool position.
Specifications
| Tool Specification | HSKA63 |
| Tool loading capacity | 120T |
| Max. tool length | 300mm |
| Max. tool diameter full tool | φ60mm |
| Max. tool weight | 6kg |
| Magazine drive | Servo motor |
| Tool selection | Shortest route tool selection |
| Air source pressure | 4~8kg/cm2 |
| Driving voltage | 3φ220V |
