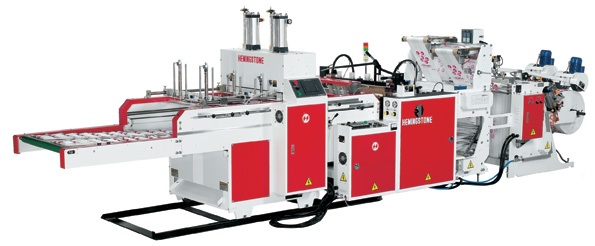

T-Shirt Bag Making Machine
Model: HM-800DT/ 1000DT
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Plastic Bag Making Machines
Characteristics
This is a special design of pratical type T-Shirt bag making machine, operating in fully automatic system. This machine including inveter motor driven system in unwind unit, EPC control for two line and finish product folding unit, providing the highest production speed and output.
Special design servo-driven bag feeding is easy to operate.
Equipped the multi auto alarms with automatic stop design.
High efficiency on production.
The whole pile of bags has the "Rocking System", which would not make the 2 pcs of bags?sealing stick together.
Specifications
Model
|
HM-800DT
|
HM-1000DT
|
||
Bag Size
|
width (mm)
|
max. 330 x 2
|
max. 430 x 2
|
|
Length(mm)
|
max. 650
|
max. 650
|
||
Max. Production Speed (cycles/min) |
max. 300
|
max. 300
|
||
Thickness of Film (mm) |
0.01~0.035
|
0.01~0.035
|
||
Heaters (kw) |
7
|
8
|
||
Power Required (kw)
|
10
|
11
|
||
Machine Dimensions
|
L(m)
|
6.6
|
6.6
|
|
W(m)
|
1.64
|
1.85
|
||
H(m)
|
1.8 |
1.8 |
||
Machine weight (kg)
|
2500
|
2700
|
||
Gross Weight (kg) |
900
|
3100
|
||
Air Compressor(not included) (hp)
|
10
|
10
|
