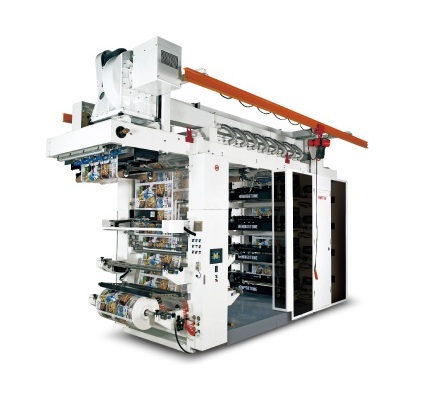

Super High-speed Stack Type Flexo Printing Machine(8 color)



Model: HM-1208FP-OD/ 1408FP-OD/ 1608FP-OD

Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Flexo Printing Machines



Online Inquiry





Characteristics



The frame of the machine is reinforced to avoid vibration while operating in high speed.
Precise teeth belt drive; provides a silent operating environment.
Super-fine printing control system.
Obverse and reverse side printing function.
Provide sufficient space in each station for easy doctor blade installation and maintenance.
Auto tension control system for double-decked unwind and rewind unit.
Newly designed wind tunnel with drying system for high speed operation.
Full color LCD touch-screen operation panel.

※TOUCH-SCREEN OPERATION PANEL:
Operators are able to control the computer system from a large full-color LCD touch panel.

※DOUBLE UNWINDING STATIONS:
Both unwinder stations are separately controlled by a servomotor. Automatic tension control system and E.P.C. are activated simultaneously.

※DOUBLE RE-WINDING STATIONS:
Both rewinders are individually driven by a servomotor as well. Due to the cleverly matchup between our fully automatic tension control system and edge guider, the film is able to be rewinded perfectly.

※PRINTING STATIONS:
All printing stations have a micrometric adjustment system for accurate printing registration. The main transmission uses teeth type belt, driven by a precision pulley. It is able to obtain super fine print quality and a silent operating environment during high-speed operations. (Doctor blade is optional.)
*Optional accessory: Sleeve system

※PRINTING STATIONS WITH DOCTOR BLADE CHAMBER SYSTEM:
All the ceramic rollers are imported and precisely engraved by laser. Each set of ceramic rollers are equipped with a doctor blade chamber and our exclusive design of ink circulation system. Integrating these units together is able to advance the printing quality to another level.
