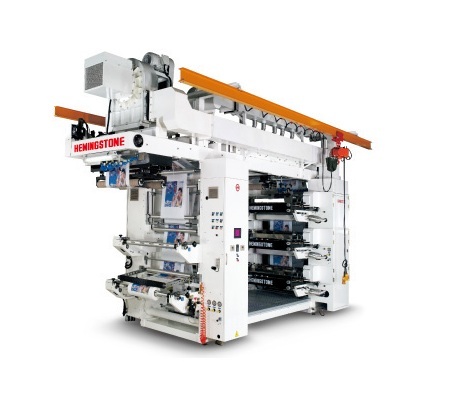

Super High-speed Stack Type Flexo Printing Machine with ink roll system(6 color)

Enlarge

Super High-speed Stack Type Flexo Printing Machine with ink roll system(6 color)

Model: HM-804FPE-OR/ 806FPE-OR/ 1004FPE-OR/ 1006FPE-OR

Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Flexo Printing Machines

Online Inquiry

Characteristics

The frame of the machine is reinforced to avoid vibration while operating in high speed.
Precise teeth belt drive; provides a silent operating environment.
Super-fine printing control system.
Obverse and reverse side printing function.
Provide sufficient space in each station for easy doctor blade installation and maintenance.
Auto tension control system for double-decked unwind and rewind unit.
Newly designed wind tunnel with drying system for high speed operation.
Full color LCD touch-screen operation panel.

※DOUBLE UNWINDING STATIONS:
Both unwinder stations are separately controlled by a servomotor. Automatic tension control system and E.P.C. are activated simultaneously.

※DOUBLE RE-WINDING STATIONS:
Both rewinders are individually driven by a servomotor as well. Due to the cleverly matchup between our fully automatic tension control system and edge guider, the film is able to be rewinded perfectly.

※PRINTING STATIONS:
All printing stations have a micrometric adjustment system for accurate printing registration. The main transmission uses teeth type belt, driven by a precision pulley. It is able to obtain super fine print quality and a silent operating environment during high-speed operations. (Doctor blade is optional.)
*Optional accessory: Sleeve system

※PRINTING STATIONS WITH DOCTOR BLADE CHAMBER SYSTEM:
All the ceramic rollers are imported and precisely engraved by laser. Each set of ceramic rollers are equipped with a doctor blade chamber and our exclusive design of ink circulation system. Integrating these units together is able to advance the printing quality to another level.

Specifications

Model		HM-804FPE-OD	HM-806FPE-OD	HM-1004FPE-OD	HM-1006FEP-OD	HM-1204FPE-OD
Printing width(mm)		750	750	950	950	1150
Film Width(mm)		900	900	1100	1100	1300
No. of color		4	6	4	6	4
Printing repeat(mm)		300~900	300~900	300~900	300~900	300~900
Production speed (m/min.)		80~125	80~125	80~125	80~125	80~125
Printing possibility		4+0, 1+3, 2+2	6+0, 1+5, 2+4, 3+3	4+0, 1+3, 2+2	6+0, 1+5, 2+4, 3+3	4+0, 1+3, 2+2
Max. heaters		85A (32 kw)	85A (32 kw)	85A (32 kw)	85A (32 kw)	85A (32 kw)
Main motor(kw)		4.4	4.4	4.4	4.4	4.4
Power required		130A (50 kw)	130A (50 kw)	130A (50 kw)	130A (50 kw)	130A (50 kw)
M/C dimensions	L(m)	7.5	7.5	7.5	7.5	7.5
	W(m)	2.9	2.9	3.1	3.1	3.3
	H(m)	3.5	4.0	3.5	4.0	3.5
Air Compressor (hp) not included		5	5	5	5	5

Model		HM-1206FPE-OD	HM-1404FPE-OD	HM-1406FPE-OD	HM-1604FEP-OD	HM-1606FPE-OD
Printing width(mm)		1150	1350	1350	1550	1550
Film Width(mm)		1300	1500	1500	1700	1700
No. of color		6	4	6	4	6
Printing repeat(mm)		300~900	300~900	300~900	300~900	300~900
Production speed (m/min.)		80~125	80~125	80~125	80~125	80~125
Printing possibility		6+0, 1+5, 2+4, 3+3	4+0, 1+3, 2+2	6+0, 1+5, 2+4, 3+3	4+0, 1+3, 2+2	6+0, 1+5, 2+4, 3+3
Max. heaters		85A (32 kw)	85A (32 kw)	85A (32 kw)	85A (32 kw)	85A (32 kw)
Main motor(kw)		5.5	5.5	5.5	5.5	5.5
Power required		130A (50 kw)	130A (50 kw)	130A (50 kw)	130A (50 kw)	130A (50 kw)
M/C dimensions	L(m)	7.5	7.5	7.5	7.5	7.5
	W(m)	3.3	3.5	3.5	3.7	3.7
	H(m)	4.0	3.5	4.0	3.5	4.0
Air Compressor (hp) not included		5	5	5	5	5
