Printing Machine - With Doctor Blade Chamber System In-line With Bag Making Or Extrusion Machine

Enlarge

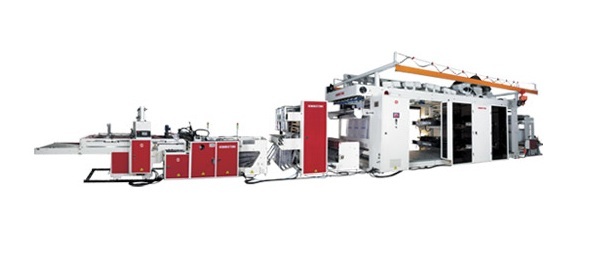

Printing Machine - With Doctor Blade Chamber System In-line With Bag Making Or Extrusion Machine

Model: HM-1004FP-ID/ 1006FP-ID/ 1204FP-ID/ 1206FP-ID

Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Flexo Printing Machines

Online Inquiry

Characteristics

The frame of the machine is reinforced to avoid vibration while operating in high speed.
Precise teeth belt drive; provides a silent operating environment.
Super-fine printing control system.
Obverse and reverse side printing function.
Provide sufficient space in each station for easy doctor blade installation and maintenance.
Auto tension control system for double-decked unwind and rewind unit.
Newly designed wind tunnel with drying system for high speed operation.
Full color LCD touch-screen operation panel.

※AUTOMATIC SERVO-CONTROL SYSTEM WITH PHOTOCELL FOR FRONT AND REVERSE PRINTING:
The system automatically adjusts the position of printing at both front and reverse sides. It can ensure the printing on both sides are aligned perfectly.

Specifications

Model		HM-1004FP-ID	HM-1006FP-ID	HM-1204FP-ID	HM-1206FP-ID
Printing width(mm)		950	950	1150	1150
Film Width(mm)		1100	1100	1300	1300
No. of color		4	6	4	6
Printing repeat(mm)		300~900	300~900	300~900	300~900
Production speed (m/min.)		80~150	80~150	80~150	80~150
Printing possibility		4+0, 1+3, 2+2	6+0, 1+5, 2+4, 3+3	4+0, 1+3, 2+2	6+0, 1+5, 2+4, 3+3
Max. heaters		30	40	30	50
Main motor(kw)		5.5	5.5	5.5	5.5
Power required		180A (68 kw)	180A (68 kw)	180A (68 kw)	180A (68 kw)
M/C dimensions	L(m)	7.0	7.0	7.0	7.0
	W(m)	3.1	3.1	3.3	3.3
	H(m)	3.5	4.0	3.5	4.0
Air Compressor (hp) not included		5	5	5	5

Model		HM-1404FP-ID	HM-1406FP-ID	HM-1604FP-ID	HM-1606FP-ID
Printing width(mm)		1350	1350	1550	1550
Film Width(mm)		1500	1500	1700	1700
No. of color		4	6	4	6
Printing repeat(mm)		300~900	300~900	300~900	300~900
Production speed (m/min.)		80~150	80~150	80~150	80~150
Printing possibility		4+0, 1+3, 2+2	6+0, 1+5, 2+4, 3+3	4+0, 1+3, 2+2	6+0, 1+5, 2+4, 3+3
Max. heaters		30	50	30	50
Main motor(kw)		5.5	5.5	5.5	5.5
Power required		180A (68 kw)	180A (68 kw)	180A (68 kw)	180A (68 kw)
M/C dimensions	L(m)	7.0	7.0	7.0	7.0
	W(m)	3.5	3.5	3.7	3.7
	H(m)	3.5	4.0	3.5	4.0
Air Compressor (hp) not included		5	5	5	5
