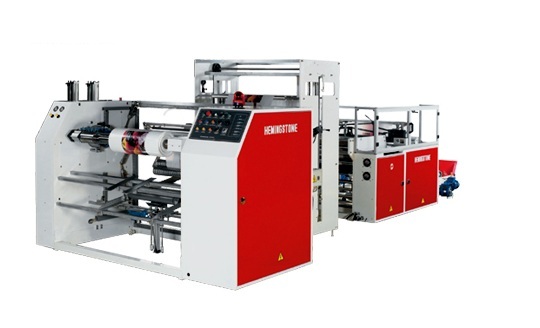

Cutting & Sealing Machinery - Bottom Sealing On Roll
Model: HM-1000MR
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Plastic Bag Making Machines
Characteristics
High Speed Fully Automatic Bottom Sealing Machine for coreless Bags on Rolls with Photo Cell.
High speed, perforated & printed bag on roll making machine employs a synchronic transmission using a 4 servo motor control system to provide stable production speeds.
Fully automatic electrical control system.
Up and down knives work with bottom sealed or double sealed bags thanks to independent temperature control-no need to change sealing knife.
Sealing and perforation knives move simultaneously.
Average production speed of printed bags and plain bags is 120 m/min (240 cycles/min.)
Produces star seal bags, garbage bags, vegetable bags, table cloths, and laundry bags.
Suitable materials include HDPE, LDPE, LLDPE and recycled material.
There is one photo cell on this machine for the manufacture of one line printed bags.
FULLY AUTOMATIC REWINDING UNIT :
The fully automatic rewinding unit works on both one and two lines. When the pre-set number of bags has finished winding, the roll will automatically change.
SPECIAL SEALING KNIFE SYSTEM:
The cooling circulation system inhibits deformation of the sealing knife.
Turn over type sealing knife is specially designed for easy maintenance.
The entire sealing unit system is synchronically controlled by 4 servo motors to achieve high speed production.
Specifications
Model
|
HM-1000MR
|
||
Bag Sealing Size | Film Unwind Width(mm) |
900 x 1,400 x 2
|
|
Film Diameter(mm) |
800
|
||
Bag Size
|
Width(mm)
|
900 x 1,400 x 2
|
|
Length(mm)
|
150~2000
|
||
Production Speed ( pcs/min) |
240
|
||
Lines Speed
|
Without Core(m/min)
|
120
|
|
With Core(m/min)
|
-
|
||
Thickness of Film (Total mm) |
0.02~0.2
|
||
Speed for Changing the Roll |
7
|
||
Production of Rolls |
Without Core
|
Roll Width(mm)
|
580 x 1,260 x 2
|
Roll Diameter(mm)
|
130
|
||
With Core
|
Roll Width(mm)
|
-
|
|
Roll Diameter(mm)
|
-
|
||
Machine Dimensions | L(m) |
6.5
|
|
W(m) |
2.42
|
||
H(m) |
2
|
||
Machine Weight(kg) |
2500
|
||
Air Compressor(not included)(hp)
|
5
|
