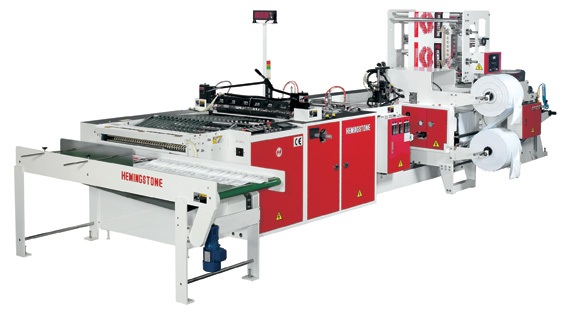

High Speed Soft Loop Handle & Die Cut handle bag-making machine



Model: HM-830MF

Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Plastic Bag Making Machines



Online Inquiry





Characteristics



Super High Speed Soft Loop Handle & Die Cut Handle Bag Making Machine
This is the cutting edge design super high-speed soft loop handle & die cut handle bag making machine that we have researched and developed over a decade.
The designs of the entire production processes are the results of brainstorming and nonstop improvement. This machine will highly enhances production efficiency, reduces the production cost and allows the buyer to gain a significant margin of profit in the market.

※MANUFACTURE OF SOFT LOOP CARRIER BAGS
At the rear are two unwinding stations for the polyethylene handle film. The film width is identical to the loop length. The film is cut into narrow strips, and fed into the top fold. The flexible handle film feed, push out and welding systems are separately driven by three servo motors. The roll of film is fed, cut and automatically welded to the precise center of the carrier bag.

※AUTO CONVEYOR TABLE
The conveyor belt will automatically decelerate while producing soft loop handle bags. The finished product will fall in line for convenience collection. The conveyor belt is stopped while producing the die cut handle bag. The finished product is pc by pc overlapped on the conveyor table. The machine will auto stop when bag quantity reached, and the conveyor table will move again for the next stack.

※PHOTO-CELL CONTROL
This series of machines uses Erwin Sick Photocell for precise control of image to the side weld.

※PRE-WARMING STATION
Additional stabilization of the side weld in the area of the bottom gusset by the pre-sealing station for the four layers of film.

※HEM SEALING SYSTEM
The adjustable hem sealing available after top folding, seals top fold longitudinally and continously. Bag size is easily changed, no limit.
