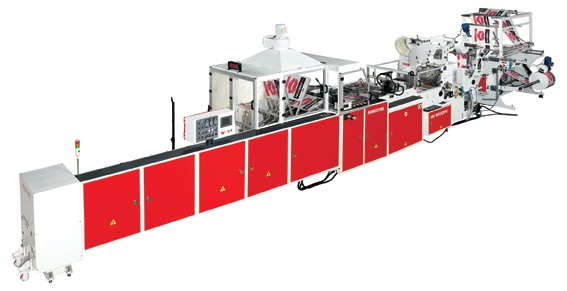

Super High Speed Fully Automatic Inside Glue Patch Handle Carrier Bag Making Machine with Wicketer
Model: HM-800GPW
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Plastic Bag Making Machines
Characteristics
Super High Speed Fully Automatic Inside Glue Patch Handle Carrier Bag Making Machine with Wicketer
It's integrated with the high technology.
With design of automation, it's fully automatic for production.
With varied automatic alarm.
Optional device for die cut handle bags.
Optional device for single sheet.
HYDRAULIC UNWIND UNIT WITH FOLDING
Double-deck design to save sapce.
It's deisgned for hydraulic unwinding, the maximum width of film is 1600mm and the@maximum diameter of film is 1000mm.
Driven by inverter motor automatically.
EPC included.
SIDE SEALING UNIT
The sealing knife is made of the best material and without deformation even heated by high temperature.
It's designed with patent on the fixed sealing knife that is humanistic structure.
The sealing knife is high-speed turn-over type, and easy for clean.
GLUE PATCH UNIT:
From gluing, slitting, cutting to sticking, it accomplishes with high speed automatically and at one go. For the research and develop of high technology, it's a significant contribution in the field of plastic industry.
It's beautiful for sticking and without wrinkle.
The load on the handle is high.
It's adjustable on the glue consumption to save the production cost and make the capacity high.
It's equipped with the edge guider position control system (EPC).
HOT PUNCHING UNIT:
It's designed by heating punching, and it's easy to cut off.
It's easy to maintain the punching mold.
The waste is excluded automatically.
8-ROTARY-ARMS UNIT
The collection of bags is by 8 Rotary Arms designed in vacuum type to take the bags easily. Even the machine operates in high speed, the speed of the arms is slow. It could decrease the coefficient of wind resistance, and take the bag precisely.
PHOTO-CELL CONTROL:
This series of machine uses Erwin Sick Photocell for precise control of print image to the side weld.
PRE-WARMING STATION:
Additional stabilisation of the side weld in the area of the bottom gusset by the pre-sealing station for the four layers of film.
Specifications
Model
|
HM-800GPW
|
||
Bag Size
|
width
|
200~600
|
|
Length
|
300~660
|
||
Bottom Gusseting
|
30~75
|
||
Film Unwind Width Bag Film(mm) |
1600
|
||
Max. production Speed (cycles/min) |
150~220
|
||
Line Speed (m/min) |
max. 90
|
||
Thickness of Film(mm) |
0.06~0.1
|
||
Film Width Patch Film(mm) |
140
|
||
Film Dia. Patch Film(mm) |
600
|
||
Heaters (kw) |
1.8KW x 1
0.8KW x 5 |
||
Power Required
|
12.0KW
|
||
Machine Dimensions
|
L(m)
|
13
|
|
W(m)
|
2.45
|
||
H(m)
|
2.75 |
||
Machine weight(kg)
|
4000
|
||
Air Compressor(not included) (hp)
|
10
|
