- Super High Speed Universal Welding Machine for side, bottom and double sealing bag production

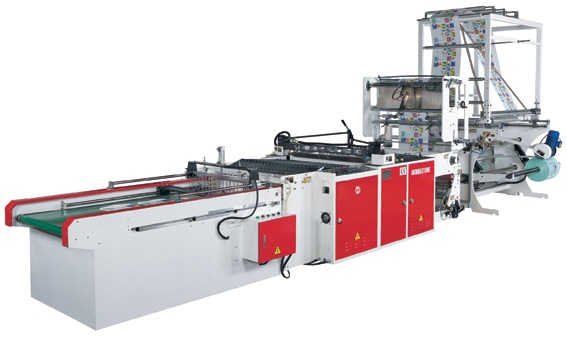

Super High Speed Universal Welding Machine for side, bottom and double sealing bag production
Model: HM-800UW
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Plastic Bag Making Machines
Characteristics
High Speed Universal Welding Machine for Production Side Weld, Bottom Weld & Double-weld Bags
Collecting bags with a deceleration function to make the bags collected neatly in order to reduce manpower.
SEALING KNIFE "TURNOVER" DEVICE
The newly designed structure of sealing knife. While needing to clean the sealing knife, it can turn over and then fix for cleanness. This ensures the safety and keeps the maintenance easy.
HOT SLITTING DEVICE
The temperature of heating is adjustable.
Provide high hot-slitting output.
Easy to maintain.
Able to slit the film to make the bags.
Specifications
Model
|
HM-800UW
|
|||
Bag Size
|
width
|
Side/Double Sealing
|
660mm
|
|
Bottom Sealing
|
711mm
|
|||
Length
|
Side/Double Sealing
|
760mm
|
||
Bottom Sealing
|
254~1270mm
|
|||
Max. production Speed (cycles/min) |
250pcs
|
|||
Thickness of Film (mm) |
0.01~0.2
|
|||
Heaters (kW) |
205kW
|
|||
Power Required (kW)
|
4.5
|
|||
Machine Dimensions
|
L(m)
|
4.2
|
||
W(m)
|
1.65
|
|||
H(m)
|
1.85 |
|||
Machine weight (kg)
|
1500
|
|||
Gross Weight (kg) |
2200
|
|||
Air Compressor (not included)(hp)
|
13
|
