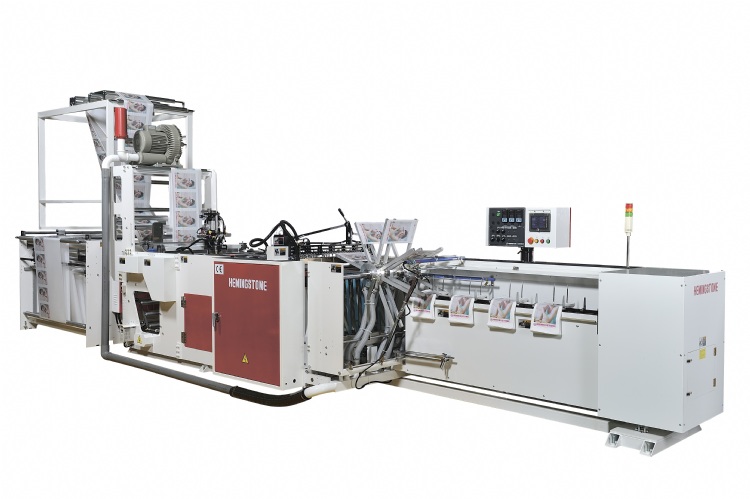

High Speed Automatic Wicketer with Servo Motor Drive System(CK: for Chicken Bag)

Enlarge

High Speed Automatic Wicketer with Servo Motor Drive System(CK: for Chicken Bag)

Model: HM-800W+CK

Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Plastic Bag Making Machines

Online Inquiry

Characteristics

※8-ROTARY-ARMS UNIT:
The collection of bags is by 8 Rotary Arms designed in vacuum type to take the bags easily. Even the machine operates in high speed, the speed of the arms is slow. It could decrease the coefficient of wind resistance, and take the bags precisely.

※ROUND BOTTOM SEALING FOR CHICKEN BAG:
( Optional accessory)
Special design round bottom sealing unit (double arcs type)for chicken bag. Both sides can be heated independently, so the sealing is strong. The speed is 170 pcs/per min.

※ROUND PUNCHING UNIT:
The Round Punching Knife is changeable. This unit is well designed for easy replacing and low maintenance. Meanwhile, the machine is able to run with high speed.

Specifications

Model		HM-800W	HM-800W+CK	HM-1000W
Bag Size(mm)	Width(Each Line)	90-330mm		90-330mm
	Length	300-700mm		300-900mm
Production Speed (Cycles/Min.)		Bakery PE: 300/Max. PP:200/Max.	Bakery PE: 300/Max. PP:200/Max. Chicken Bag:250 Max.	Bakery PE: 300/Max. PP:200/Max.
Tickness of Film(mm)		0.015~0.07		0.015~0.07
Heaters		4kw	4kw×1 0.5kw×1 0.45kw×1	4.5kw
Power Required		10kw	10kw	10kw
Machine Dimensions	L(M)	8.0		8.0
	W(M)	3.0		3.2
	H(M)	1.85		1.85
Gross Welght(KG)		2200		2800
Not Included		Air Compressor 7.5HP		Air Compressor 7.5HP
		PP Sealing Knife(Optional)		PP Sealing Knife(Optional)
