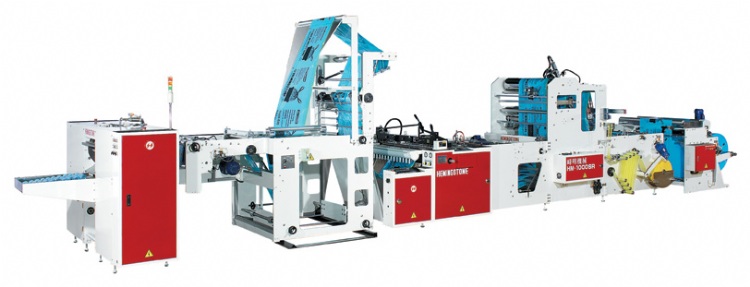

Draw Tape Garbage Bag Making Machine for Bag-on-Roll
Model: HM-1000SR
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Plastic Bag Making Machines
Characteristics
Draw Tape Garbage Bag Making Machine for Bag-on-Roll
AUTO CHANGING REWINDING MACHINE WITHOUT CORE
Auto changing rewind; machine cuts and changes automatically when get quantity reached. Finished product then falls to conveyor table.
Optional auto labelling machine available.
Specifications
Model
|
HM-1000SR
|
HM-1250SR
|
||
Bag Sealing Size | Film Unwind Width(mm) |
1000
|
1250
|
|
Film Diameter(mm) |
1000
|
1000
|
||
Bag Size
|
Width(mm)
|
Max. 1000
|
Max. 1000
|
|
Length(mm)
|
Max. 900
|
Max. 1100
|
||
Production Speed (pcs/min ) |
Max. 120
|
Max. 110
|
||
Thickness of Film (Total mm) |
0.015~0.05
|
0.015~0.05
|
||
Speed for Changing the Roll |
Max. 8
|
Max. 8
|
||
Production of Rolls |
Draw Tape Film Width (mm) |
100
|
100
|
|
Draw Tape Film Diameter (mm) |
600
|
600
|
||
Without Core
|
Roll Width(mm) |
300
|
300
|
|
Roll Dia.(mm)
|
130
|
130
|
||
Power Required (kW) |
10
|
12
|
||
Machine Dimensions | L(m) |
14.5
|
15
|
|
W(m) |
2.25
|
2.75
|
||
H(m) |
3.05
|
3.65
|
||
Machine Weight(kg) |
3000
|
4000
|
||
Air Compressor(not included)(hp)
|
7.5
|
7.5
|
