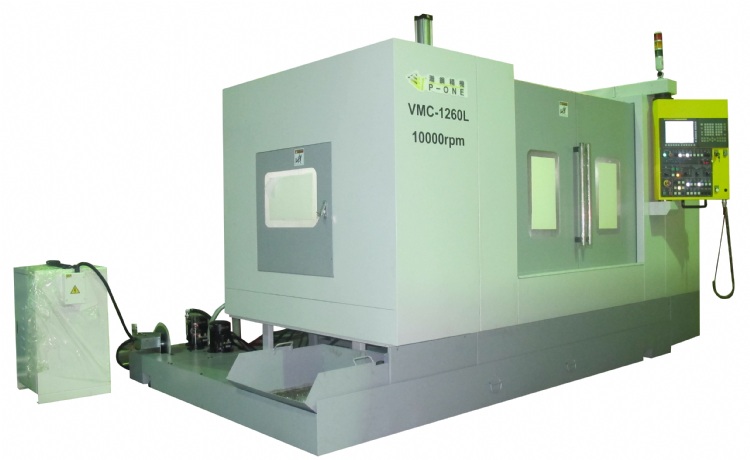

Vertical Machining Center
Model: VMC-1260L
Category: Machine Tools / Machining Centers / Machining Centers, Vertical
Characteristics
▶ The best choice of high-speed & high precision machining center.
▶The four-slide with eight blocks supports the broad base.
▶The construction of X axes is configured & supported by six(6) heavy blocks ensuring high rigidity and positioning durability.
▶ BT-50 taper is available for mold and dies.
Specifications
@ | @ | VMC-1260L |
X-axis Travel | @ | 1200mm |
Y-axis Travel | @ | 600mm |
Z-axis Travel | @ | 610mm |
Spindle nose to table | @ | 90~690mm |
Spindle center to column | @ | 650mm |
Worktable | @ | @ |
Table Size | @ | 1270x600mm |
T-Slots | @ | 18x5x100mm |
Max.Table Load | @ | 1000kg |
SPINDLE | @ | @ |
Spindle Speed | @ | 10000rpm ( Opt.12000 rpm) |
Spindle Taper | @ | BT-40 |
FEEDRATE | @ | @ |
Rapid Traverse(X.Y) | @ | 24m/min |
Rapid Traverse(Z) | @ | 20m/min |
Feed Rate ( X.Y.Z) | @ | 1-6000mm/min |
AUTOMATIC TOOL CHANGER | @ | @ |
Magazine Capacity | @ | 24 |
Tool Change Type | @ | Arm type |
Max.tool change diameter | @ | Ø75mm |
Max.tool weight | @ | 7kg |
MOTOR | @ | @ |
Spindle Motor(cont/30min) | @ | AC 7.5/11KW |
Axise Servo motor | @ | Fanuc 2.5KW |
Others | @ | @ |
Dimension (LxWxH) | @ | 4100x3760x3050mm |
Machine net weight | @ | 6900kg |
