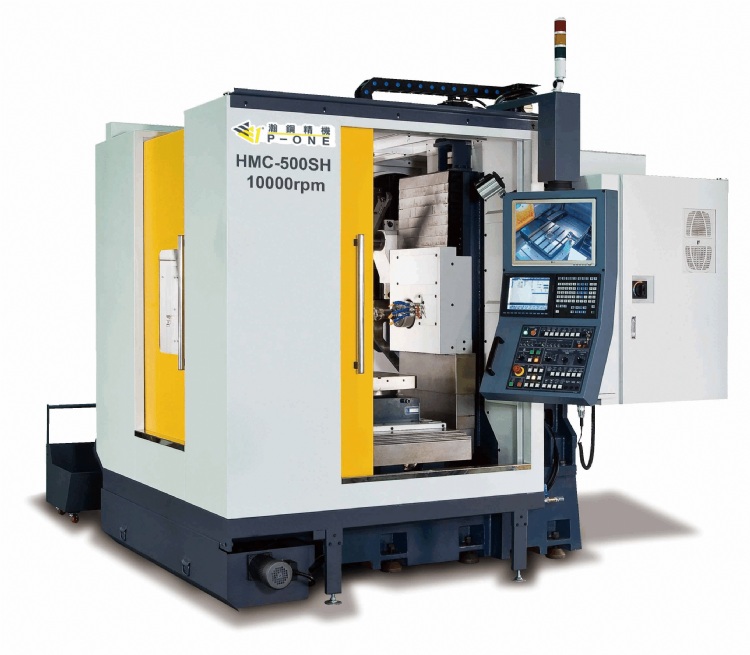

Horizontal Machining Center (Linear Guide)
Model: HMC-500SH
Category: Machine Tools / Machining Centers / Machining Centers, Horizontal
Characteristics
▶机体採用坚固超强的箱型结构底床，可确保机台长期精度及稳定性。
▶机台速度大幅提升，同时增加切削能力及速度达到缩短循环加工时间目标。
▶X 、Y、Z轴滚珠螺杆採预拉机构，能防止产生热膨胀。直结式连轴器，确保传动精度，避免迟滞误差。
▶卧式机种�笓PC，节省佔地空间，适合客製化生产线。
▶特质：稳重、底座滑轨採四滑轨、八个滑块平均支撑设计，在加工切削时，绝对平稳，可获得最佳动态水平。
Specifications
| HMC-500SH | |
| Travel of X/Y/Z-axis (mm) | 520x600x550 |
| Linear Guide of X/Y/Z-axis | X:35mm Y:45mm Z:25mm |
| Ballscrews of X/Y/Z-axis | Ø40xPH10 |
| Distance from spindle nose to table | 160-710mm |
| Distance from spindle center to table surface | 90-690mm |
| SPINDLE | |
| Spindle taper | BT-40 |
| Spindle nose outer diameter | 65mm |
| Spindle speed | 10000rpm / Direct Drive |
| INDEX TABLE | |
| Table size | 500x500mm |
| Indexing degree | 1° or 5° (Opt.:0.001°) |
| Max. loading capacity(kg) | 800kg |
| FEEDRATE | |
| Cutting feedrate of X/Y/Z-axis (m/min) | 1-60m/min |
| Rapid traverse speed of X/Y/Z-axis (m/min) | 24/16/24 m/min |
| AUTOMATIC TOOL CHANGER | |
| Tool capacity | 24 |
| Tool-change | Arm type ATC |
| Max. diameter | Ø80 |
| Max. tool weight | 7kg |
| MOTOR | |
| Spindle motor | 7.5/11kw |
| Servo motor of X/Y/Z/B-axis | 3.0/3.0/3.0/3.0kw |
| Spindle Oil Cooler motor | 0.2kw |
| Centralized lubrication system | 0.02kw |
| Index Table Hydraulic motor | 0.75kw |
| Coolant motor (for tools/chips) | 0.75kw |
| Chip conveyor motor | 0.2kw |
| ATC motor | 0.37kw |
| Accuracy | |
| Positioning | ±0.004mm |
| Repeatability | ±0.003mm |
| Measurement | |
| Dimensions (W × H × D) | 3500x3900x3000mm |
| Machine N.W. | 8,200kg |
