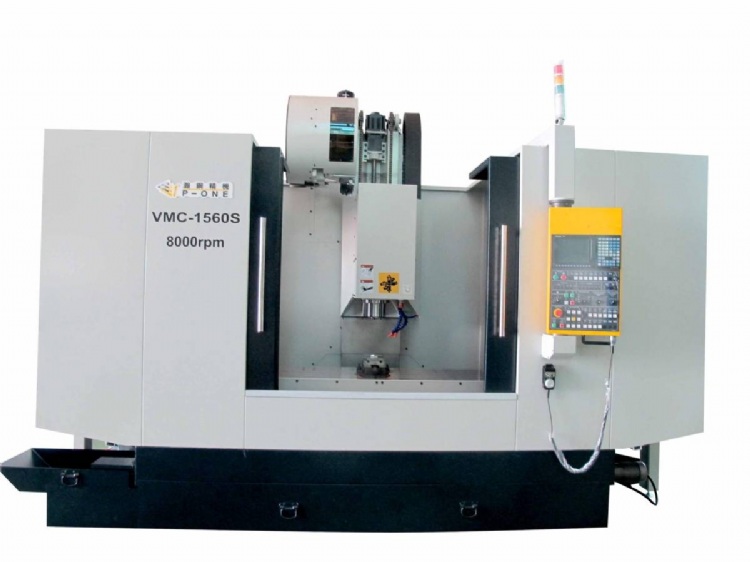

Vertical Machining Center
Model: VMC-1560S
Category: Machine Tools / Machining Centers / Machining Centers, Vertical
Characteristics
1. To ensure the optimum rigidity and durability of the machine, the broad four slides base evenly supported the eight blocks.
2. Z-axes box way design enhances stability and anti-rumble.
3. To ensure positioning accuracy and the control of the machining error, X-Y axes adopt precision heavy load linear slide.
4. The golden ratio of headstock and Y axes stroke offers rock-steady support. Ultra-large Y-shaped column surface combined with four slides base to minimize deformation during processing.
Specifications
@ | @ | VMC-1560S |
X-axis Travel | @ | 1500mm |
Y-axis Travel | @ | 680mm / 750mm (Opt.) |
Z-axis Travel | @ | 650mm/800mm & 1200mm(Opt) |
Table Size | @ | 1700x650mm |
T-Slots | @ | 18x5x100mm |
Max.Table Load | @ | 1100kg |
Spindle nose to table | @ | 100~750mm |
Spindle center to column | @ | 750mm |
SPINDLE | @ | @ |
Spindle Speed | @ | 8000rpm |
@ | @ | 10,000rpm & 12,000rpm (Opt) |
Spindle Taper | @ | BT40 / *BT50(Opt.) |
FEEDRATE | @ | @ |
Rapid Traverse(X.Y) | @ | 20m/min |
Rapid Traverse(Z) | @ | 18m/min |
Feed Rate ( X.Y.Z) | @ | 1-6000mm/min |
AUTO TOOL CHANGER | @ | @ |
Magazine Capacity | @ | 24 |
Tool Change Type | @ | Arm type |
Max.tool change diameter | @ | Ø80mm |
Max.tool weight | @ | 7kg |
MOTOR | @ | @ |
Spindle Motor(cont/30min) | @ | 11/15kw |
Axis Servo motor | @ | Fanuc 3.0kw |
@ | @ | Mitsubishi 3.5kw |
OTHERS | @ | @ |
Dimension (LxWxH) | @ | 4140x3665x2650mm |
Machine NW | @ | 9200kg |
