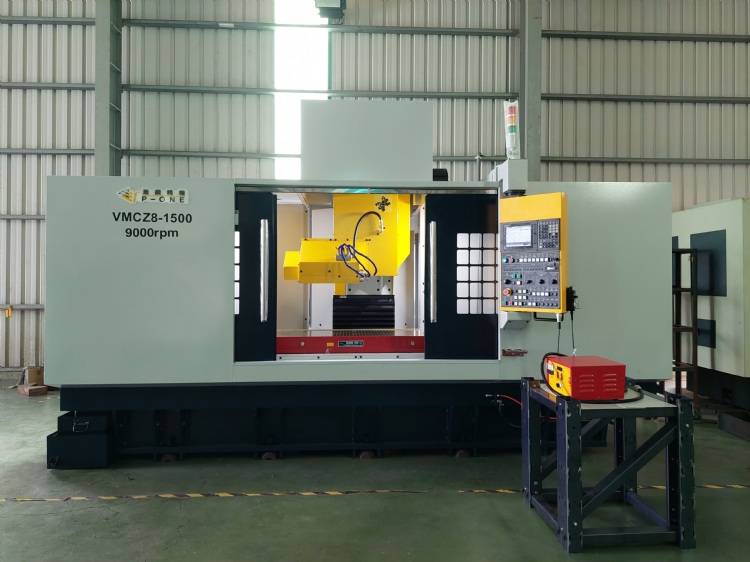

Vertical Machining Center
Model: VMCZ8-1500
Category: Machine Tools / Machining Centers / Machining Centers, Vertical
Characteristics
✥Wide machine structure base with "inverted T" shaped design.
✥The widened and lengthened saddle, and full load support design ensure heavy load capacity during machining.
✥The body is stable, waterproof, and smooth chip evacuation.
✥The machine is equipped with a closed rail guard, effective protection of the guide rail, and screws to extend its service life.
When equipped with 3D full protection, the machine is strongly chipping to ensure that it does not vibrate.
✥X-axis movement, table full support design. The stroke 1500~2200mm is the best choice.
✥Start-up and operation show a stable state to ensure the long-term accuracy of the machine.
✥It is especially suitable for machining designated parts of long workpieces, round-shaped workpieces, and front-end parts.
✥ In addition to the vertical machining design, this machine can also be changed to a horizontal machining design.
#Tailor-made according to the customer's needs.
Specifications
| 工作範圍 | Capacity | ||
| X軸行程 | X-axis Travel | mm | 1500 |
| Y軸行程 | Y-axis Travel | mm | 600 |
| Z軸行程 | Z-axis Travel | mm | 500 |
| 主軸鼻端至工作台面距離 | Distance from spindle nose to table | mm | 90-590 |
| 主軸中心至立柱軌道面 | Distance from spindle center to column | mm | 650 |
| 工作台 | TABLE | ||
| 工作台面積 | Table size | mm | 1700x600 |
| 最大荷重 | Permissable max of workpiece | Kg | 1500 |
| 工作台T槽尺寸 | T-slot | mm | 18x5x100 |
| 主軸 | SPINDLE | ||
| 主軸轉速 | Spindle Speed | rpm | 8000 |
| 鼻端型式 | Spindle nose | BT-40 | |
| 傳動方式 | Transmission | Belt | |
| 進給率 | FEEDRATE | ||
| 快速位移 | Rapid Traverse(X-Y-Z) | mm/min | 12-12-15 |
| 切削進給率 | Feed Rate ( X.Y.Z) | mm/min | 6000 |
| 自動換刀系統 | AUTOMATIC TOOL CHANGER | ||
| 刀柄型式 | Tool shank | BT | |
| 刀柄拉桿 | Rentenion knob | MAS-P40T-1(45ﾟ) | |
| 刀具數 | Tool storage capacity | 24 | |
| 刀具最大外徑(相鄰刀) | Max.tool change diameter(with adjacent tools) | mm | Ø75 |
| 刀具最大重量 | Tool weight max, | kg | 7 |
| 刀具最大長度 | Tool length max, | mm | 75 |
| 選刀方式 | Tool selection | sec | Random |
| 馬達 | MOTOR | ||
| 主軸馬達 | Spindle motor(30min/cont) | kw | 11/15 |
| X軸伺服馬達 | X-axis feed motor | kw | 3 |
| 滾珠導螺桿 | Ball screw | mm | Ø50x12 |
| Y軸伺服馬達 | Y-axis feed motor | kw | 3 |
| 滾珠導螺桿 | Ball screw | mm | Ø50x12 |
| Z軸伺服馬達 (含剎車) | Z-axis feed motor | kw | 3 |
| 滾珠導螺桿 | Ball screw | mm | Ø40x12 |
| 三軸軌道 | Guideway | ||
| X軸軌道 | X Guide way | Ball type Linear | |
| 軌道寬度 | Width | mm | 45 |
| Y軸軌道 | Y Guide way | Ball type Linear | |
| 軌道寬度 | Width | mm | 45 |
| Z軸軌道 | Z Guide way | Ball type Linear | |
| 軌道寬度 | Width | mm | 45 |
| 所需動力源 | Power sources | ||
| 電力需求 | Electrical power supply | KVA | 30 |
| 各箱體容量 | |||
| 潤滑油箱容量 | Lubricant tank | L | 3 |
| 切削水箱容量 | Coolant tank | L | 280 |
| 其他 | Miscellaneous | ||
| 三軸定位精度 | Positioning accuracy XYZ | mm | +/-0.005 |
| 三軸重複定位精度 | Repeatability XYZ | mm | +/-0.003 |
