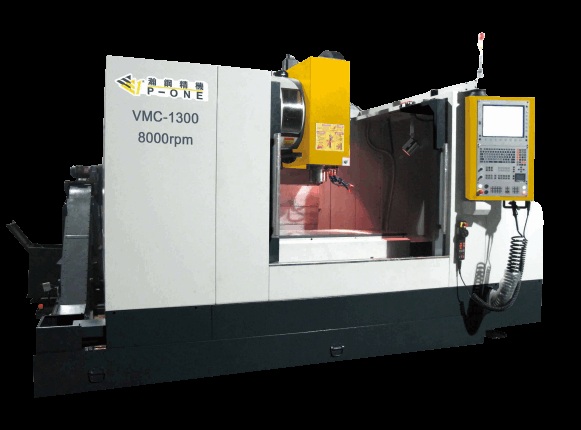

Vertical Machining Center
Model: VMC-1300
Category: Machine Tools / Machining Centers / Machining Centers, Vertical
Characteristics
3- axes casting structure design with rigidity analysis.
Heavy-duty structure & high rigidity.
To ensure the accuracy and stability of the machine, the column, base, table, and saddle are all made of high-quality Meehanite cast iron through stress relief.
The table and saddle are completely supported to assure stability and rigidity during processing.
Specifications
| MODEL | VMC-1300 |
| X-axis Travel | 1300mm |
| Y-axis Travel | 650mm |
| Z-axis Travel | 610mm |
| Spindle nose to table | 120~730mm |
| Spindle center to column | 680mm |
| WORKTABLE | |
| Table Size | 1410x600mm |
| T-Slots | 18x5x100mm |
| Max.Table Load | 1100kg |
| SPINDLE | |
| Spindle Speed | 8000rpm |
| 10000rpm & 12000rpm (opt.) | |
| Spindle Taper | BT-40 |
| FEEDRATE | |
| Rapid Traverse(X.Y) | 15m/min |
| Rapid Traverse(Z) | 12m/min |
| Feed Rate ( X.Y.Z) | 1-6000mm/min |
| AUTO TOOL CHANGER | |
| Magazine Capacity | 24 |
| Tool Change Type | Arm type |
| Max.tool change diameter | Ø75mm |
| Max.tool weight | 7kg |
| MOTOR | |
| Spindle Motor(cont/30min) | AC 11/15kw |
| Axise Servo motor | 3.0kw |
| OTHERS | |
| Dimension | 3950x3560x2700mm |
| Machine N.W. | 7800kg |
