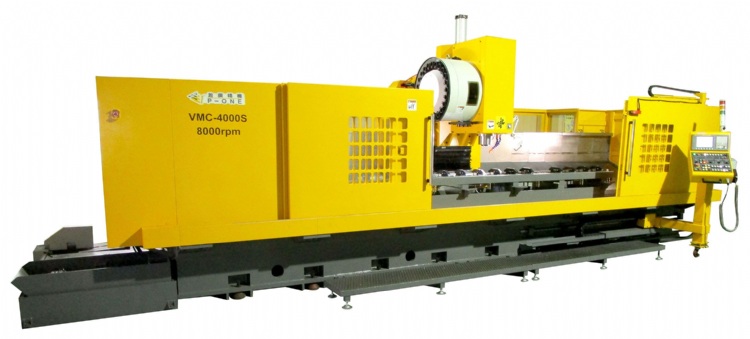

Moving Column Vertical Machining Center
Model: VMC-4000S
Category: Machine Tools / Machining Centers / Machining Centers, Vertical
Characteristics
▶For heavy-duty & light-finish machining such as long strip, flat pallet, steel, iron, casting or aluminum alloy, etc. workpiece.
▶ Applicable to complex processing needs- milling, cutting, and drilling.
▶High rigidity structure with heavy load linear slide to share evenly. Lower wear rate, lower lost motion, and deformation resistance.
▶Running smoothly and providing better surface finish to ensure high accuracy under long-term operation.
▶Moving Column mechanism is a great substitute for a double-column type machining center due to space-saving.
Specifications
@ | @ | VMC-4000S |
X-axis Travel | @ | 4000mm ( Opt._ Random length) |
Y-axis Travel | @ | 450mm/*560mm(Opt) |
Z-axis Travel | @ | 500mm |
Spindle nose to table | @ | 90~590mm |
Spindle center to column | @ | 650mm |
SPINDLE | @ | @ |
Spindle Speed | @ | 8000rpm |
Spindle Taper | @ | BT-40 |
FEEDRATE | @ | @ |
Rapid Traverse(X.Y) | @ | 12m/min |
Rapid Traverse(Z) | @ | 15m/min |
Feed Rate ( X.Y.Z) | @ | 1-6000mm/min |
AUTO TOOL CHANGER | @ | @ |
Magazine Capacity | @ | 24 |
Tool Change Type | @ | Arm type |
Max.tool change diameter | @ | Ø75mm |
Max.tool weight | @ | 7kg |
MOTOR | @ | @ |
Spindle Motor(cont/30min) | @ | AC 11/15kw |
Axise Servo motor | @ | 3.0kw |
OTHERS | @ | @ |
Machine dimension(L*W*H) | @ | 8050*3700*3100mm |
Machine N.W. | @ | 17500kg |
