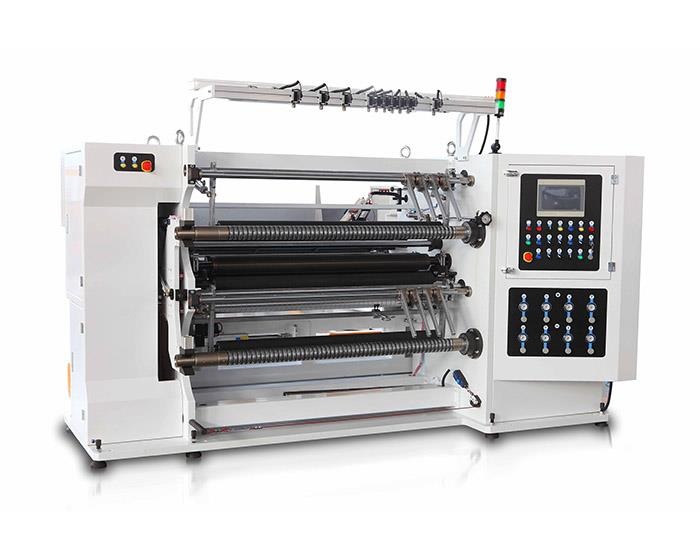

Plastic Film Slitting Machine
Model: PFM01
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Plastic Slitting & Rewinding Machines
Characteristics
This slitting machine is suitable for roll materials such as BOPP/CPP/PET/PE/composite film/aluminized film.
Is a hot-selling slitter, especially in Southeast Asian countries.
Specifications
Application：
Is a hot-selling slitter, especially in Southeast Asian countries.
Parameter：
| Unwinding Diameter | Max Ø800mm |
| Rewind Diameter | Max Ø500mm |
| Max Working Width | 1300mm |
| Unwind Core Diameter | Ø76mm (3") |
| Rewind Core Diameter | Ø76mm (3") |
| Min. Slitting Width | 50mm |
| Mechanical Speed | Max 400m/Min (Depending On Working Conditions) |
| Material Thickness Range | 0.012mm-0.15mm |
| Traction Motor | 1 Set 3.7 Kw |
| Rewinding Motors | 2 Set 3.0 Kw |
| Blower Motor | 1 Set 1.5 Kw |
| Total Energy Consumption | ≈12V |
| Pneumatic Pressure | 0.6 Mpa |
| Power Supply Voltage | AC 380V±5% Three-Phase Five-Wire、50Hz |
| Guiding Accuracy | ±0.3mm |
| Web Guiding Movement Range | ±75mm |
| Machine Dimension | L3100*W2130*H1800mm |
| Weight | 4200 Kg |
