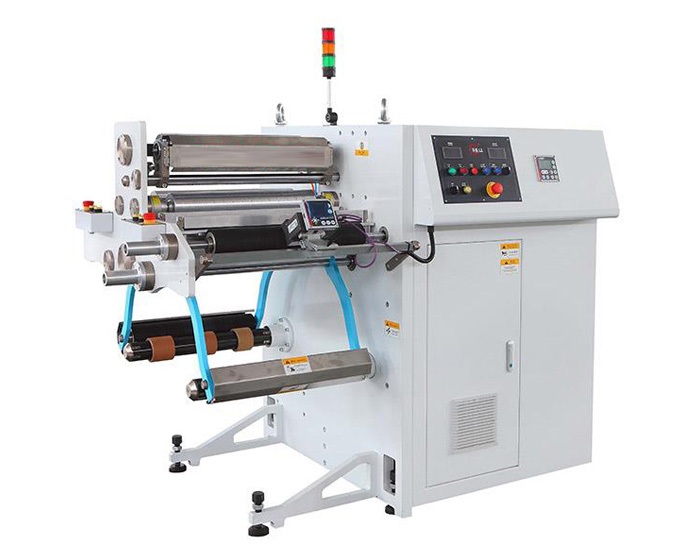

Automatic High Speed Rewinding Machine
Model: AHSRM01
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Plastic Slitting & Rewinding Machines
Characteristics
Small film rewinding machine, suitable for rewinding of roll material such as BOPP/ CPP/ PET/ PE/ composite film/aluminized film, mechanical speed 300m/min, winding diameter 600mm, unwinding diameter 600mm, 3 motor structure.
Specifications
Description
1. Active unwinding, variable frequency motor control tension. The cantilever type has a shaft unwinding and is automatically inflated. Standard 3-inch key inflation shaft.
2. The control system of this machine is centrally controlled by Panasonic PLC of Japan, and the parameters are set by the touch screen and the working status is monitored.
| Unwinding Diameter | Max Ø600mm |
| Rewind Diameter | Max Ø600mm |
| Max Working Width | 500mm |
| Unwind Core Diameter | Ø76mm (3") |
| Rewind Core Diameter | Ø76mm (3") |
| Mechanical Speed | Max 300m/Min (Depending On Working Conditions) |
| Materialthicknessrange | 0.012mm-0.2m |
| Tension Range | 20-150N |
| Traction Power | 1 Set 2.2 Kw |
| Unwinding Power | 1 Set 3.7 Kw |
| Rewinding Power | 1 Set 3.7 Kw |
| Total Energy Consumption | ≈11 Kw |
| Pneumatic Pressure | 0.6 Mpa |
| Power Supply Voltage | AC 380V±5% Three-Phase Five-Wire、50Hz |
| Un. Tension Control | Constant Tension |
| Guiding Accuracy | ±0.3mm |
| Meteraccuracy | ±0.003m |
| Web Guiding Movement Range | ±50mm |
| Machinedimension | L1360*W1720*H1500 |
| Weight | 1500 Kg |
