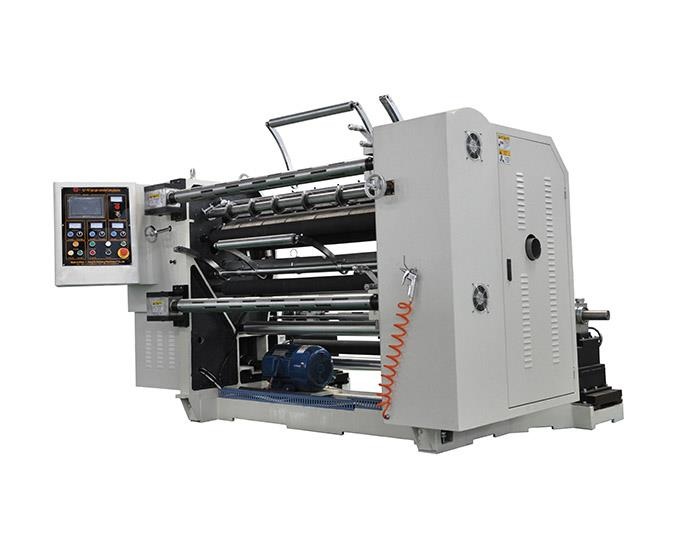

Small Slitting Machine
Model: SPFM01
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Plastic Slitting & Rewinding Machines
Characteristics
This is an economical slitting machine that we sell well for cutting of PET, BOPP, CPP, composite materials and label roll materials. The side wall reel is used, and the mechanical speed is 200m/min.
Specifications
Feature：
1. Multifunctional vertical slitting machine, rewinding machine
2. Optional round knife system
3. All lines and air lines of the machine are closedly arranged to reduce the malfunction caused by human factors.
4. Have a one-year warranty
Description：
| Unwinding Diameter | Max Ø600mm |
| Rewind Diameter | Max Ø400mm |
| Max Working Width | 1300mm |
| Unwind Core Diameter | Ø76mm (3")/6(152) Is Optional |
| Rewind Core Diameter | Ø76mm (3")/6(152) Is Optional |
| Mechanical Speed | Max 200m/Min (Depending On Working Conditions) |
| Material Thickness Range | 0.012mm-0.15mm |
| Traction Motor | 1 Set 4 Kw |
| Unwinding Brake | 1 Set 5 Kg |
| Rewinding Clutch | 1Set 5 Kg |
| Blower Motor | 1 Set 0.5 Kw |
| Total Energy Consumption | ≈5kw |
| Pneumatic Pressure | 0.6 Mpa |
| Power Supply Voltage | AC 380V±5% Three-Phase Five-Wire、50Hz |
| Guiding Accuracy | ±0.5mm |
| Web Guiding Movement Range | ±100mm |
| Machine Dimension | L2600*W1500*H1400mm |
| Weight | 4300 Kg |
