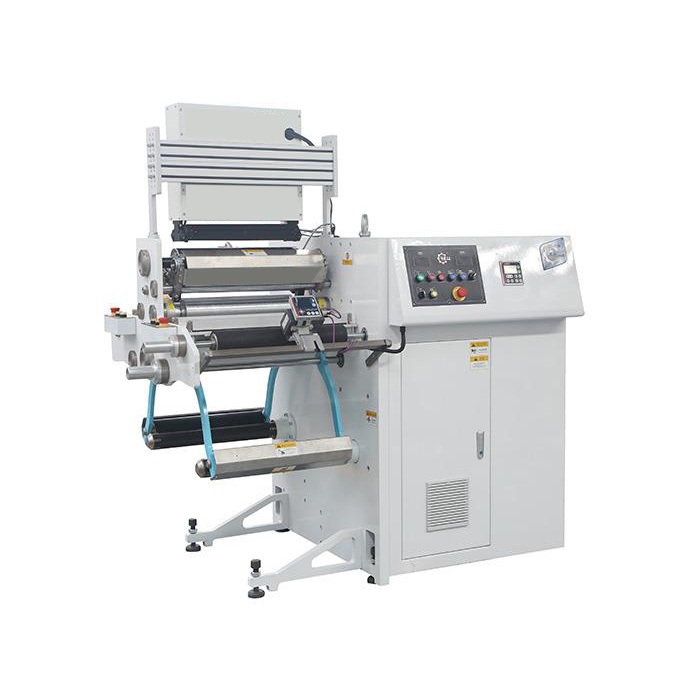

Roll Inspecting Machine
Model: RIM01
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Test and Measuring Equipment
Characteristics
High-speed rewinding machine, 3 motor structure, suitable for rewinding of plastic film and composite film of BOPP, CPP, PET, PE, etc., and also can be installed as inspection machine by adding inspection system.
Specifications
Description
Features:
1. Active unwinding, variable frequency motor control tension. The cantilever type has a shaft unwinding and is automatically inflated. Standard 3-inch key inflation shaft.
2. The control system of this machine is centrally controlled by Panasonic PLC of Japan, and the parameters are set by the touch screen and the working status is monitored.
Parameter
| Unwinding Diameter | Max Ø600mm |
| Rewind Diameter | Max Ø600mm |
| Max Working Width | 500mm |
| Unwind Core Diameter | Ø76mm (3") |
| Rewind Core Diameter | Ø76mm (3") |
| Mechanical Speed | Max 300m/Min (Depending On Working Conditions) |
| Materialthicknessrange | 0.012mm-0.2m |
| Tension Range | 20-150N |
| Traction Power | 1 Set 2.2 Kw |
| Unwinding Power | 1 Set 3.7 Kw |
| Rewinding Power | 1 Set 3.7 Kw |
| Total Energy Consumption | ≈11 Kw |
| Pneumatic Pressure | 0.6 Mpa |
| Power Supply Voltage | AC 380V±5% Three-Phase Five-Wire、50Hz |
| Un. Tension Control | |
| Constant Tension | |
| Guiding Accuracy | ±0.3mm |
| Meteraccuracy | ±0.003m |
| Web Guiding Movement Range | ±50mm |
| Machinedimension | L1360*W1720*H1500 |
| Weight | 1500 Kg |
